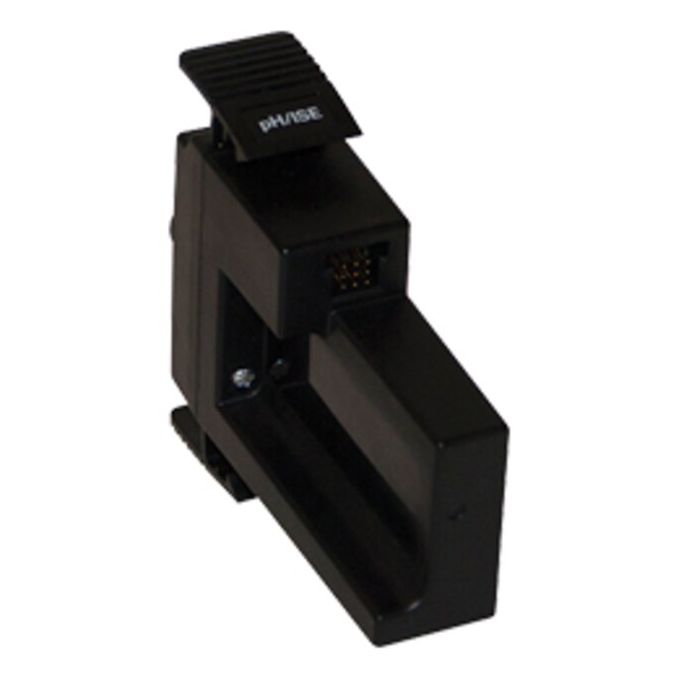

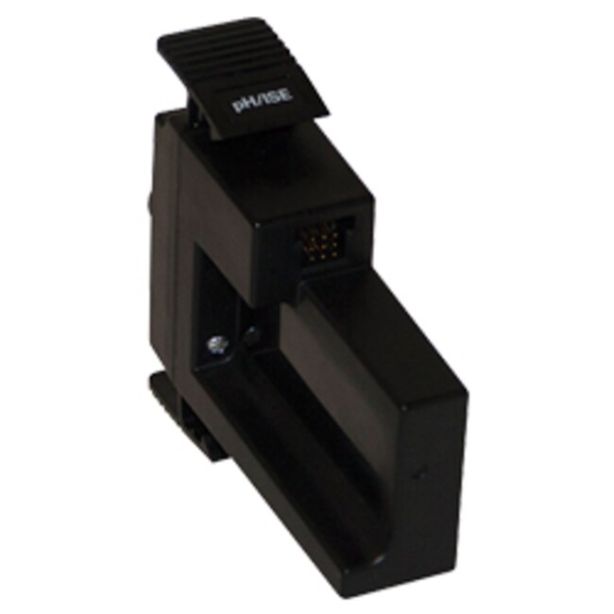

Orion VSTAR-ISE Orion Versa Star pH/ISE measurement module
SKU
VSTAR-ISE
$1,308.13
Add pH, ion concentration, mV, ORP and temperature measurement capabilities to your Versa Star meter using the Thermo Scientific™ Orion™ Versa Star pH / ISE Measurement Module
| Segment | WAI Lab |
|---|---|
| Unit | Water Analysis |
| Family | Lab Instruments |
| Class | Instrument |
| Major Code | E-chem Benchtop Meter |
| Minor Code | LVS1- Versa Star Meter |
| Accuracy ISE | ±0.2 mV or ±0.05 of reading, whichever is greater |
| Accuracy MV | ±0.2 mV or ±0.05% of reading whichever is greater |
| Accuracy PH | ±0.002 pH |
| Accuracy Temperature | ±0.1°C |
| Advanced Ise Functions | Timed endpoint, linear point to point, non-linear selectable auto-blank, low concentration range stability, incremental techniques including single known addition and subtraction, double known addition and subtraction, single analyte addition and subtract |
| Alarm Output | Set point alarm, high/low limit alarm, calibration due alarm |
| Calibration | 1 point (mV mode) |
| Calibration Points | 1 point relative mV (RmV) mode, 1 point ORP mode |
| Calibration Points Ise | 1 to 6 |
| Calibration Points Ph | 1 to 6 |
| Description | Orion VERSA STAR pH/mV/ISE/Temperature Module |
| Dimensions LxWxH | 12 x 3 x 9.5 cm (4.7 x 1.2 x 3.8 in.) |
| Includes | VERSA STAR pH/mV/ISE/Temperature Module |
| Inputs | BNC (pH or ISE), 8-pin Mini-DIN (temperature), reference pin-tip |
| IP Rating | IP-54 |
| Isopotential Point | 7.000pH (adjustable), 1.000 ISE (adjustable) |
| Measurement Modes | pH, mV, relative mV (RmV), ORP or ion concentration (ISE) with temperature |
| Methods | 10 per channel with password protection |
| Model | Orion Versa Star pH/ISE/mV/RmV/ORP/Temperature Measurement Module |
| PH Range | -2.000 to 20.000 |
| Probe Type | pH electrode, ORP electrode, ion selective electrode (ISE), reference half-cell electrode, ATC temperature probe (purchase separately) |
| Range Ise | 0 to 19999 in ppm, M, mg/L, %, ppb or unitless |
| Range Mv | ±2000.0mV |
| Range Orp | ±2000.0mV |
| Relative Humidity Range | 5 to 85 %, non-condensing |
| Resolution Ise | Up to 4 significant digits |
| Resolution Mv | 0.1mV |
| Resolution Ph | 0.1, 0.01, 0.001 |
| Resolution Temperature | 0.1°C |
| Stability | Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting |
| Temperature English Operating | 41°F to 113°F |
| Temperature Metric Operating | 5°C to 45°C |
| Temperature Metric Range | -5°C to 105deg;C |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Temperature Selection | Manual or automatic with ATC temperature probe |
| Type | pH/ISE Measurement Module |
| Unit Size | Each |
| Warranty | 3 year module warranty |
| Weight English | 0.5 lb. |
| Weight Metric | 0.2 kg |
Select from five Thermo Scientific Orion Versa Star measurement modules to customize the measurement capabilities of your Orion Versa Star meter. Measurement modules are interchangeable and can be added or removed from each Versa Star meter's four channels at any time.
Orion Versa Star pH/ISE Measurement Module:
- Measure pH, ion concentration, mV, relative mV or ORP with temperature
- Perform up to a six point pH calibration using automatic buffer recognition of NIST, DIN or user-defined buffer groups with choice to manually enter custom buffer values
- Perform up to a six point ISE (Ion Selective Electrode) calibration with selectable units of ppm, M, mg/L, %, ppb or none
- Incremental techniques include single known addition, double known addition, single known subtraction, double known subtraction, analate addition and analate subtraction
- Advanced ISE features include non-linear selectable auto-blank, low range stability and electrode ID with calibration verification
- Customize measurements to show calibration history and pH electrode condition or simplify to show an extra large pH or ion concentration reading
- Module offers a 3-year replacement warranty
