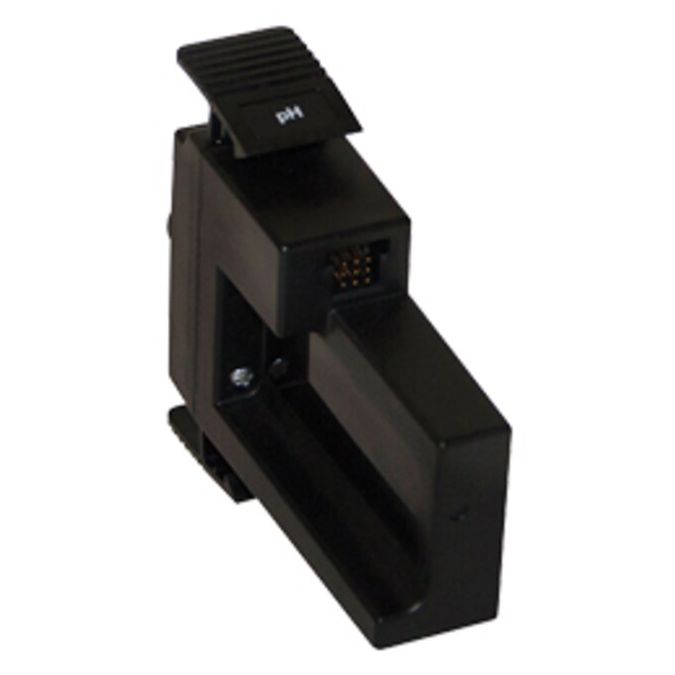

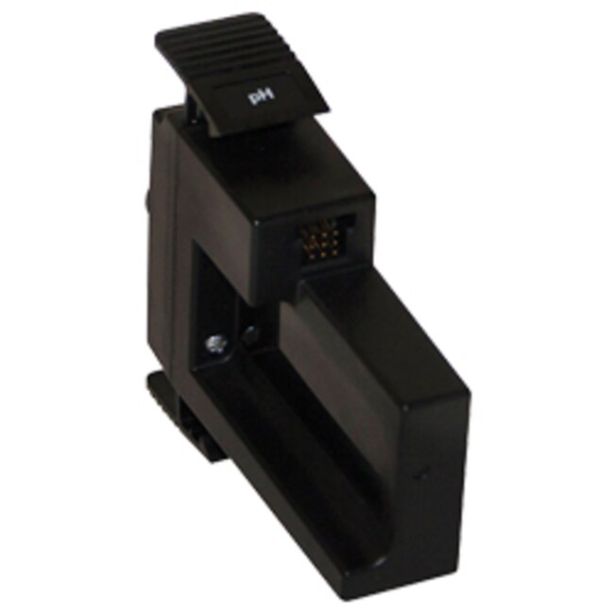

Orion VSTAR-PH Orion Versa Star pH measurement module
SKU
VSTAR-PH
$689.81
Add pH, mV, ORP and temperature measurement capabilities to your Versa Star meter using the Thermo Scientific™ Orion™ Versa Star pH Measurement Module
| Segment | WAI Lab |
|---|---|
| Unit | Water Analysis |
| Family | Lab Instruments |
| Class | Instrument |
| Major Code | E-chem Benchtop Meter |
| Minor Code | LVS1- Versa Star Meter |
| Accuracy MV | ±0.2 mV or ±0.05% of reading whichever is greater |
| Accuracy PH | ±0.002 pH |
| Accuracy Temperature | ±0.1°C |
| Alarm Output | Set point alarm, high/low limit alarm, calibration due alarm |
| Calibration | pH with calibration editing option, relative mV (RmV), ORP and temperature |
| Calibration Points | 1 to 6 |
| Description | Orion Versa Star pH measurement module |
| Dimensions LxWxH | 12 x 3 x 9.5 cm (4.7 x 1.2 x 3.8 in.) |
| Includes | Versa Star pH measurement module for use with Versa Star Pro meters to measure pH, mV, relative mV, ORP and temperature using ATC probe or manual entry |
| Inputs | BNC (pH or ORP electrode), pin-tip (reference electrode), 8 pin MiniDIN (ATC temperature probe) |
| IP Rating | IP-54 |
| Isopotential Point | 7.000pH (adjustable) |
| Measurement Modes | pH, mV, relative mV (RmV) or ORP with temperature |
| Methods | 10 per channel with password protection |
| Model | Orion Versa Star pH/mV/RmV/ORP/Temperature Measurement Module |
| PH Range | -2.000 to 20.000 |
| Probe Type | pH electrode, ORP electrode, reference half-cell electrode, ATC temperature probe (purchase separately) |
| Range Mv | ±2000.0 mV |
| Range Orp | ±2000.0mV |
| Relative Humidity Range | 5 to 85%, non-condensing |
| Resolution Mv | 0.1mV |
| Resolution Ph | 0.1, 0.01, 0.001 |
| Resolution Temperature | 0.1°F/°C |
| Stability | Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting |
| Temperature English Operating | 41°F to 113°F |
| Temperature English Range | 22.0°F to 221.0°F |
| Temperature Metric Operating | 5°C to 45°C |
| Temperature Metric Range | -5°C to 105deg;C |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Temperature Selection | Manual or automatic with ATC temperature probe |
| Type | pH Measurement Module |
| Unit Size | Each |
| Warranty | 3 year module warranty |
| Weight English | 0.5 lb. |
| Weight Metric | 0.2 kg |
Select from five Thermo Scientific Orion Versa Star measurement modules to customize the measurement capabilities of your Orion Versa Star meter. Measurement modules are interchangeable and can be added or removed from each Versa Star meter's four channels at any time.
Orion Versa Star pH Measurement Module:
- Measure pH, mV, relative mV or ORP with temperature
- Perform up to a six point pH calibration using automatic buffer recognition of NIST, DIN or user-defined buffer groups with choice to manually enter custom buffer values
- Calibration editing option allows individual points to be fixed without a full recalibration
- Customize measurements to show calibration history and pH electrode condition or simplify to show an extra large pH reading
- Module offers a 3-year replacement warranty
