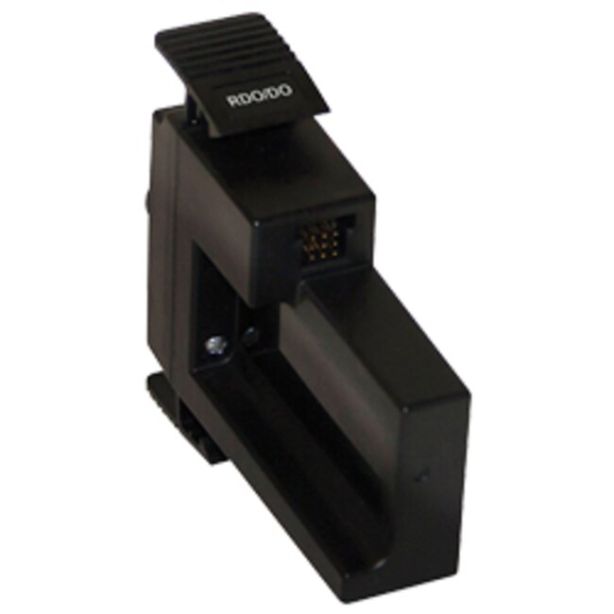

Orion VSTAR-RD Orion Versa Star dissolved oxygen measurement module
SKU
VSTAR-RD
$1,113.13
Add dissolved oxygen and temperature measurement capabilities to your Versa Star meter using the Thermo Scientific™ Orion™ Versa Star Dissolved Oxygen / RDO Measurement Module
| Segment | WAI Lab |
|---|---|
| Unit | Water Analysis |
| Family | Lab Instruments |
| Class | Instrument |
| Major Code | E-chem Benchtop Meter |
| Minor Code | LVS1- Versa Star Meter |
| Accuracy Barometer | ±6mmHg |
| Accuracy Polarographic DO | ±0.2 mg/L or ±2% of reading, whichever is greater |
| Accuracy RDO | ±0.1mg/L up to 8mg/L, ±0.2mg/L from 8 to 20mg/L, ±10% of reading up to 50mg/L |
| Accuracy Temperature | ±0.1°C |
| Alarm Output | Set point alarm, high/low limit alarm, calibration due alarm |
| Barometric Pressure Correction | 400 to 850 mmHg, automatic using built-in barometer or manual entry |
| Calibration Modes | Water-saturated air, air-saturated water, manual (Winkler titration), zero point |
| Description | Orion Versa Star RDO/DO/temperature measurement module |
| Dimensions LxWxH | 12 x 3 x 9.5 cm (4.7 x 1.2 x 3.8 in.) |
| Includes | Versa Star RDO/DO module and printed quick start guide |
| Inputs | 9 pin MiniDIN (RDO optical or polarographic DO sensor with built-in temperature) |
| IP Rating | IP-54 |
| Measurement Modes | Dissolved oxygen as % saturation or mg/L with temperature and barometric pressure |
| Methods | 10 per channel with password protection |
| Model | Orion Versa Star RDO Optical/Dissolved Oxygen/Temperature Measurement Module |
| Percent Saturation Range Polarographic DO | 0 to 600% Saturation |
| Percent Saturation Range RDO | 0.0 to 500.0 % saturation |
| Percent Saturation Relative Accuracy RDO | ±2 % saturation ≤ 200 % saturation, ±10 % saturation > 200 % saturation |
| Percent Saturation Resolution Polarographic DO | 0.1, 1 % saturation |
| Percent Saturdation Resolution RDO | 0.1, 1% Saturation |
| Pressure Range | 400 to 850mmHg |
| Pressure Resolution | 0.1mmHg |
| Probe Type | RDO optical dissolved oxygen probe, polarographic dissolved oxygen probe (purchase separately) |
| Range Polarographic Do | 0.00 to 90.00 mg/L |
| Range Rdo | 0.00 to 50.00mg/L |
| Relative Humidity Range | 5 to 85 %, non-condensing |
| Resolution Polarographic Do | 0.01, 0.1 mg/L; 0.1, 1 % saturation |
| Resolution Rdo | 0.01, 0.1 mg/L; 0.1, 1 % saturation |
| Resolution Temperature | 0.1°C |
| Salinity Factor | 0 to 45ppt |
| Stability | Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting |
| Temperature English Operating | 41°F to 113°F |
| Temperature Metric Operating | 5°C to 45°C |
| Temperature Metric Range | -5°C to 105deg;C |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Temperature Selection | Automatic with ATC temperature probe |
| Unit Size | Each |
| Warranty | 3 year meter replacement |
| Weight English | 0.5 lb. |
| Weight Metric | 0.2 kg |
Select from five Thermo Scientific Orion Versa Star measurement modules to customize the measurement capabilities of your Orion Versa Star meter. Measurement modules are interchangeable and can be added or removed from each Versa Star meter's four channels at any time.
Orion Versa Star RDO/DO Measurement Module:
- Measure dissolved oxygen in percent saturation or mg/L with temperature using Orion RDO optical DO probes or Orion polarographic DO probes and automatic sensor recognition
- Calibrate dissolved oxygen using water-saturated air, air-saturated water, custom value (Winkler titration) and zero point options
- Automatically compensate dissolved oxygen readings using ATC temperature, manual salinity input and built-in barometer for barometric pressure readings
- Customize measurements to show calibration history or simplify to show an extra large dissolved oxygen reading
- Module offers a 3-year replacement warranty
