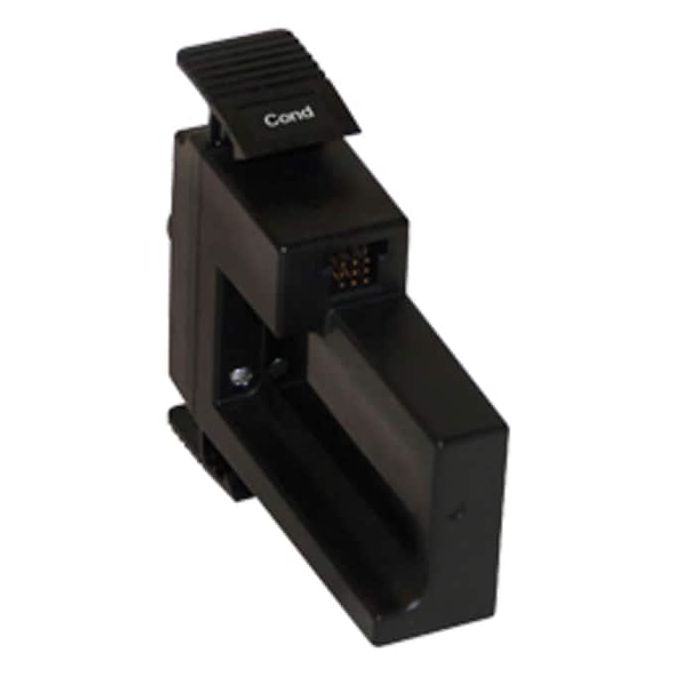

Orion VSTAR-CND Orion Versa Star conductivity measurement module
SKU
VSTAR-CND
$1,113.13
Add conductivity, TDS, salinity, resistivity and temperature measurement capabilities to your Versa Star meter using the Thermo Scientific™ Orion™ Versa Star Conductivity Module
| Segment | WAI Lab |
|---|---|
| Unit | Water Analysis |
| Family | Lab Instruments |
| Class | Instrument |
| Major Code | E-chem Benchtop Meter |
| Minor Code | LVS1- Versa Star Meter |
| Accuracy Conductivity | 0.5% of reading ±1 digit > 3 μS; 0.5% of reading ±0.01 μS ≤ 3 μS |
| Accuracy Resistivity | 0.5% of reading ±1 digit |
| Accuracy Salinity | ±0.1ppt |
| Accuracy Tds | 0.5% of reading ±1 digit |
| Accuracy Temperature | ±0.1°C |
| Alarm Output | Set point alarm, high/low limit alarm, calibration due alarm |
| Calibration | Conductivity with calibration editing option and temperature |
| Calibration Points | Up to 6 |
| Cell Constant | 0.001 to 199.9 |
| Compatible Probes | 2-cell or 4-cell conductivity sensors with built-in temperature |
| Description | Orion VERSA STAR Conductivity/TDS/Resistivity/Salinity/Temperature Module |
| Dimensions LxWxH | 12 x 3 x 9.5 cm (4.7 x 1.2 x 3.8 in.) |
| Includes | Versa Star conductivity module and printed quick start guide |
| Inputs | 8 pin MiniDIN (conductivity sensor with built-in temperature) |
| IP Rating | IP-54 |
| Measurement Modes | Conductivity, TDS, salinity or resistivity with temperature |
| Methods | 10 per channel with password protection |
| Model | Orion Versa Star Conductivity/TDS/Salinity/Resistivity/Temperature Measurement Module |
| Probe Type | Conductivity sensor (purchase separately) |
| Range Conductivity | 0.001 µS/cm to 3000 mS/cm |
| Range Resistivity | 2 ohm to 100.0 meg-ohm |
| Range Salinity | 0.06 to 80.00 psu, 0.05 to 42.00 ppt |
| Range Tds | 0.001 ppm to 200.0 ppt |
| Relative Humidity Range | 5 to 85 %, non-condensing |
| Resolution Conductivity | 0.001 μS minimum, auto ranging up to 4 significant digits |
| Resolution Resistivity | 1 ohm or 0.1 meg-ohm, auto ranging |
| Resolution Salinity | 0.01 psu or 0.01 ppt minimum, auto ranging |
| Resolution Tds | 0.001 ppm minimum, auto ranging up to 4 significant digits |
| Resolution Temperature | 0.1°F/°C |
| Salinity Measurement Modes | Practical salinity (psu) or natural sea water (ppt) |
| Stability | Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting |
| Tds Factor Range | Linear (0.02 to 9.99) |
| Temperature Compensation | Linear, nLFn (non-linear ultra pure water), nLFu (non-linear ultra pure degassed water), EP (off with warning) or off |
| Temperature English Range | 41°F to 113°F |
| Temperature Metric Operating | 5°C to 45°C |
| Temperature Metric Range | -5°C to 105deg;C |
| Temperature Metric Reference | 5, 10, 15, 20, 25°C |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Temperature Selection | Manual or automatic with ATC temperature probe |
| Type | Conductivity Measurement Module |
| Unit Size | Each |
| Warranty | 3 year meter replacement |
| Weight English | 0.5 lb. |
| Weight Metric | 0.2 kg |
Select from five Thermo Scientific Orion Versa Star measurement modules to customize the measurement capabilities of your Orion Versa Star meter. Measurement modules are interchangeable and can be added or removed from each Versa Star meter's four channels at any time.

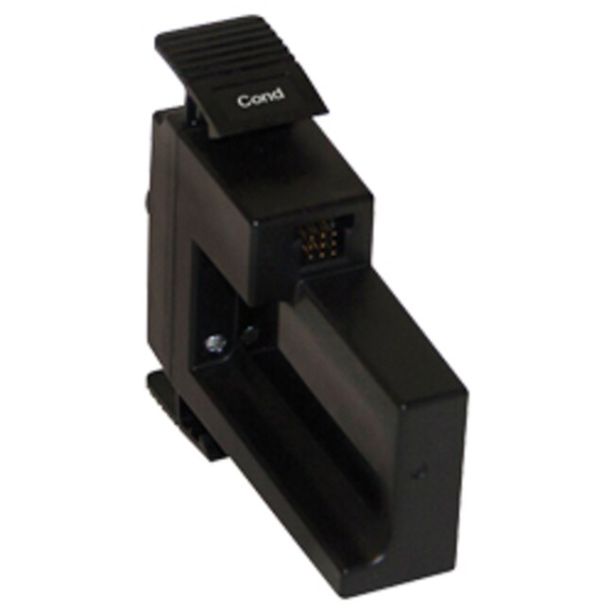

Orion Versa Star Conductivity Measurement Module:
- Measure conductivity, TDS, salinity or resistivity with temperature
- Perform up to a six point conductivity calibration with calibration editing option that allows individual points to be fixed without a full recalibration
- Auto-ranging conductivity values offer consistent readings across entire measurement range without need to recalibrate
- Use linear, non-linear, EP (USP) or off conductivity temperature compensation with 5, 10, 15, 20 or 25°C reference temperatures
- Customize measurements to show calibration history or simplify to show an extra large conductivity reading
- Module offers a 3-year replacement warranty
Disclaimer to internal research use restriction:
Any restrictions on the purchaser to utilize the product(s) for internal research purposes only does not apply to the product(s) on the web pages associated with this statement.
