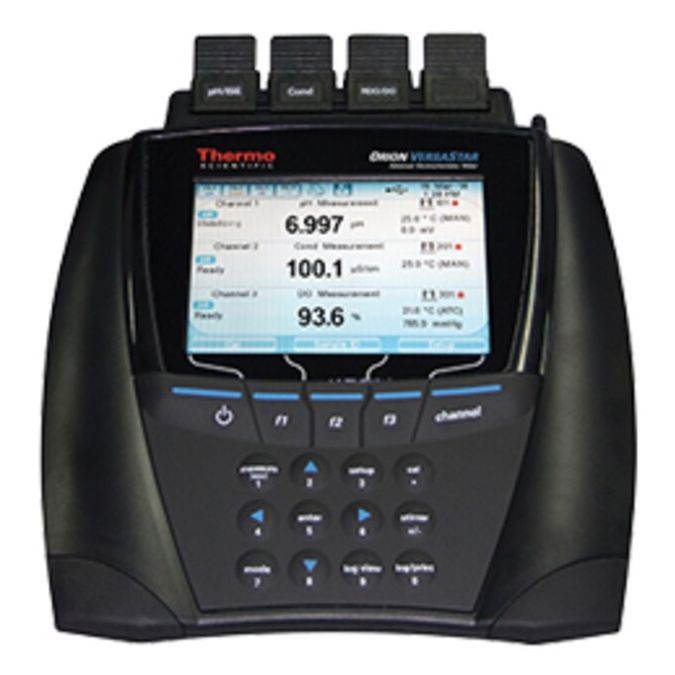

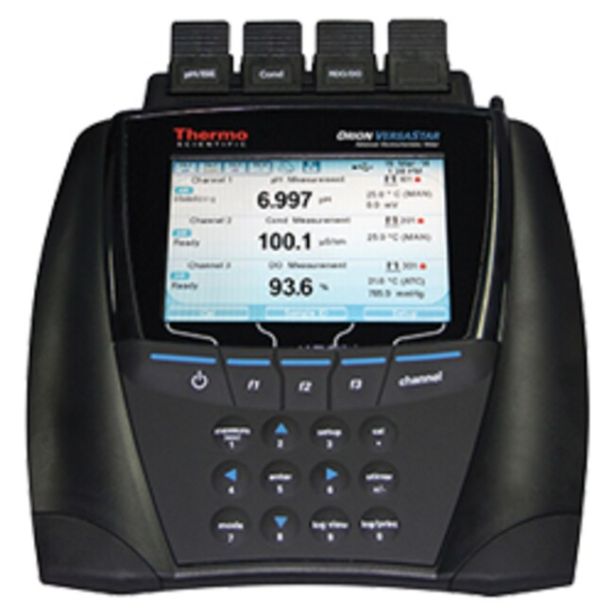

Orion VSTAR94 Orion Versa Star Pro pH/ISE; conductivity and DO meter optical DO kit
| Segment | WAI Lab |
|---|---|
| Unit | Water Analysis |
| Family | Lab Instruments |
| Class | Instrument |
| Major Code | E-chem Benchtop Meter |
| Minor Code | LVS1- Versa Star Meter |
| AC Adapter | Universal 50-60 Hz, 100-240 VAC power adapter (Cat. No. STARA-PWR) |
| Accuracy Barometer | ±6 mmHg |
| Accuracy Conductivity | 0.5% of reading ±1 digit > 3 μS; 0.5% of reading ±0.01 μS ≤ 3 μS |
| Accuracy ISE | ±0.2 mV or ±0.05% of reading whichever is greater |
| Accuracy MV | ±0.2 mV or ±0.05% of reading whichever is greater |
| Accuracy PH | ±0.002 |
| Accuracy Polarographic DO | ±0.2 mg/L or ±2% of reading, whichever is greater |
| Accuracy RDO | ±0.1 mg/L up to 8 mg/L, ±0.2 mg/L from 8 to 20 mg/L, ±10% of reading up to 50 mg/L |
| Accuracy Resistivity | 0.5% of reading ±1 digit |
| Accuracy Salinity | 0.5% of reading ±1 digit |
| Accuracy Tds | 0.5% of reading ±1 digit |
| Advanced Ise Functions | Segmented (point-to-point) slope, non-linear selectable auto-blank, low concentration range stabilit |
| Alarm Output | Set point alarm, high/low limit alarm, calibration due alarm |
| Backlight Option | Yes |
| Barometric Pressure Correction | 400 to 850mmHg, automatic using built-in barometer or manual entry |
| Calibration | pH with calibration editing option, ion concentration (ISE) with calibration editing option, relativ |
| Calibration Modes | Water-saturated air, air-saturated water, manual (Winkler titration), zero point |
| Calibration Points | 1 point relative mV (RmV) mode, 1 point ORP mode |
| Calibration Points Conductivity | Up to 6 |
| Calibration Points Ise | 1 to 6 |
| Calibration Points Ph | 1 to 6 |
| Cell Constant | 0.001 to 199.9cm-1 |
| Certifications Compliance | CE, TUV 3-1, FCC Class A |
| Channels | 4 - customizable with modules |
| Data Management Details | Transfer single, range or all data points to printer or computer |
| Data Points | 2000 with date and time stamp |
| Description | Orion Versa Star Pro benchtop meter kit with pH/ISE/mV module, conductivity/TDS/salinity/resistivity module, RDO/DO module, ROSS Ultra Triode epoxy-body pH/ATC electrode, DuraProbe 4-cell conductivity sensor, RDO optical DO sensor, stirrer probe, solution |
| Dimensions LxWxH | 28 x 24 x 10cm (11 x 9.5 x 3.9 in.), modules add ≤ 2cm (0.8 in.) L & H |
| Display Type | Color graphic LCD with user-customizable options |
| Includes | Versa Star Pro meter, VSTAR-ISE pH/ISE module, VSTAR-CND conductivity module, VSTAR-RD RDO/DO module, 8157BNUMD ROSS Ultra Triode epoxy-body pH/ATC electrode, 013005MD Orion DuraProbe 4-cell (K=0.475) conductivity sensor, 087010MD Orion RDO optical dissol |
| Inputs | BNC (pH, ORP or ion selective electrode), pin-tip (reference electrode), 8 pin MiniDIN (ATC temperature probe), 8 pin MiniDIN (conductivity sensor with built-in temperature), 9 pin MiniDIN (RDO optical or polarographic DO sensor with built-in temperature) |
| IP Rating | IP 54 |
| Isopotential Point | 7.000pH (adjustable), 1.000 ISE (adjustable) |
| Keypad | Numeric with menu-specific function keys and dual purpose scroll/shortcut keys |
| Languages | English, Spanish, French, Italian, German, Chinese, Portuguese and Korean |
| Log Function Type | Automatic data logging with Auto-Read, Timed and Single Shot measure modes; manual data logging with |
| Measurement Modes | pH, mV, Relative mV, ORP, Ion Concentration (ISE) with Temperature, TDS, Conductivity, Salinity |
| Memory | Non-volatile memory preserves data log, calibration log and meter settings |
| Methods | 10 per channel |
| Outputs | USB (2), RS232 |
| Percent Saturation Range Polarographic DO | 0.0 to 600.0% saturation |
| Percent Saturation Range RDO | 0.0 to 500.0% saturation |
| Percent Saturation Relative Accuracy RDO | ±2% saturation ≤ 200% saturation, ±10% saturation > 200% saturation |
| Percent Saturation Resolution Polarographic DO | 0.1, 1% saturation |
| Percent Saturdation Resolution RDO | 0.1, 1% saturation |
| Power Rating | DC input: 9VDC, 1A |
| Power Supply | Universal AC adapter (included) |
| Pressure Range | 400 to 850mmHg |
| Pressure Resolution | 0.1mmHg |
| Range Conductivity | 0.001 μS/cm to 3000 mS/cm |
| Range Ise | 0.0001 to 19990 with selectable units of ppm, Molar, mg/L, %, ppb or none |
| Range Mv | ±2000.0 mV |
| Range Orp | ±2000.0 mV |
| Range Ph | -2.000 to 20.000 |
| Range Polarographic Do | 0.00 to 90.00mg/L |
| Range Rdo | 0.00 to 50.00mg/L |
| Range Relative Mv | ±2000.0 mV |
| Range Resistivity | 2 ohm to 100.0 meg-ohm |
| Range Salinity | 0.06 to 80.00 psu, 0.05 to 42.00 ppt |
| Range Tds | 0.001 ppm to 200.0 ppt |
| Relative Humidity Range | 5 to 85%, non-condensing |
| Resolution Conductivity | 0.001 μS minimum, auto ranging up to 4 significant digits |
| Resolution Ise | 0.0001 minimum, 1 to 4 significant digits (user selectable) |
| Resolution Mv | 0.1mV |
| Resolution Ph | 0.1/0.01/0.001 |
| Resolution Polarographic Do | 0.01, 0.1mg/L |
| Resolution Rdo | 0.01, 0.1mg/L |
| Resolution Resistivity | 1 ohm or 0.1 meg-ohm, auto ranging |
| Resolution Salinity | 0.01 psu or 0.01 ppt minimum, auto ranging |
| Resolution Tds | 0.001 ppm minimum, auto ranging up to 4 significant digits |
| Salinity Factor | 0.0 to 45.0 ppt, automatic correction using conductivity reading or manual entry of sample salinity |
| Salinity Measurement Modes | Practical salinity (psu) or natural sea water (ppt) |
| Stability | Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting |
| Tds Factor Range | Linear (0.02 to 9.99) |
| Temperature Accuracy | ±0.1°C |
| Temperature Compensation | Linear, nLFn (non-linear ultra pure water), nLFu (non-linear ultra pure degassed water), EP (off with warning) or off |
| Temperature English Operating | 41°F to 113°F (ambient) |
| Temperature Metric Operating | 5°C to 45°C (ambient) |
| Temperature Metric Reference | 5°, 10°, 15°, 20°, 25°C |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Temperature Range English | 22.0°F to 221.0° F |
| Temperature Range Metric | -5.0°C to +105.0°C |
| Temperature Resolution | 0.1°C, 0.1°F |
| Temperature Selection | Manual or automatic with ATC temperature probe |
| Unit Size | Each |
| Weight English | 2.5 lb., modules add 0.5 lb. each |
| Weight Metric | 1.2 kg, modules add 0.2 kg each |
Get high accuracy, premium performance and ultimate flexibility with the Thermo Scientific™ Orion™ Versa Star Pro™ pH/ISE/Conductivity/Dissolved Oxygen Multiparameter Benchtop Meter. Meet your most challenging applications for pH, ion concentration, conductivity, dissolved oxygen and temperature. Easily view measurements on the stunning color display and customize the four meter channels with interchangeable modules. Log up to 2000 data point sets with time/date stamp and easily transfer logs via USB or RS232 to a printer or computer. Select systems with one or two pH/ISE modules.
Thermo Scientific Orion Versa Star Pro Benchtop Meters are designed to meet your most challenging application with ease. Delivering rich functionality and features, you can optimally configure your meter system to meet changing requirements. The Orion Versa Star Pro Benchtop Meters offer interchangeable measurement modules that allow multiple users to customize four separate channels to meet their specific requirements. Easily view your measurements on a stunning color display with adjustable text sizes. Take the guesswork out of meter calibration and setup with onscreen instructions available in a variety of local languages. Enjoy quick and simple data entry using the numeric keypad.
- Onscreen measurement stability indicator lets you know exactly when your measurements are ready
- Selectable read modes include Auto-Read to hold a stable reading, Continuous to show changing readings, Timed to log data at specific intervals and Single-Shot to hold a reading after a specific wait time is reached
- Audible alarms automatically notify you when a set offset value, high/low limit value and calibration time interval are reached
- Uniformly mix solutions using up to two meter-controlled stirrer probes that are easy to position and can be quickly rinsed between samples
- Data log collects and date/time stamps up to 2000 measurement sets with optional electrode ID, sample ID and account ID
- Calibration log stores 30 most recent calibrations per parameter with viewable graph for multipoint pH and ISE calibrations
- Ensure measurement integrity by viewing the active calibration log while taking readings
- Non-volatile meter memory preserves data and settings, even in the event of power loss
- Meter facilitates data transfers to a computer via USB or RS232 connections
- Meters include CE, TUV 3-in-1 and FCC Class A certifications
- 3-year replacement warranty
Includes Orion Versa Star pH/ISE Measurement Module:
- Measure pH, ion concentration, mV, relative mV or ORP with temperature
- Perform up to a 6 point pH calibration using automatic buffer recognition of NIST, DIN or user-defined buffer groups
- Perform up to a 6 point ISE calibration with selectable units of ppm, M, mg/L, %, ppb or none
Includes Orion Versa Star Conductivity Measurement Module:
- Measure conductivity, TDS, salinity or resistivity with temperature
- Perform up to a 6 point conductivity calibration
- Use linear, non-linear, EP (USP) or off conductivity temperature compensation with 5°C, 10°C, 15°C, 20°C or 25°C reference temperatures
Includes Orion Versa Star RDO/DO Measurement Module:
- Measure dissolved oxygen in percent saturation or mg/L with temperature using Orion RDO optical DO probes or Orion polarographic DO probes
- Calibrate DO using water-saturated air, air-saturated water, custom value (Winkler titration) and zero point options
- Automatically compensate DO readings using ATC temperature, manual salinity input and built-in barometer for barometric pressure
System Access Feature
Orion Versa Star Pro Meters offer a system access feature that is designed to help ensure data integrity by preventing undesired access to various meter functions including date/time setting, data log and calibration log. The System Access feature can be easily turned on or off as the needs of your lab change for ultimate flexibility in operation and ease-of-use. When enabled, the System Access feature allows assignment of a system administrator and up to 10 user accounts with customizable access to instrument settings, measurement settings, calibrations and logs. Use the password protection to secure selected meter functions, while leaving other functions accessible for all users. The System Access feature allows you to customize meter access to meet your specific security and data reporting needs.
Disclaimer to internal research use restriction:
Any restrictions on the purchaser to utilize the product(s) for internal research purposes only does not apply to the product(s) on the web pages associated with this statement.
-
Orion VSTAR94 Orion Versa Star Pro pH/ISE; conductivity and DO meter optical DO kit$5,183.75
-
-
-
-
