Orion STARA3220 Orion Star A322 conductivity portable meter with batteries
| Segment | WAI Lab |
|---|---|
| Unit | Water Analysis |
| Family | Lab Instruments |
| Class | Instrument |
| Major Code | E-chem Portable Meter |
| Minor Code | LSP1- Star A320 Meter |
| AC Adapter | Universal 50-60 Hz, 100-240 VAC power adapter (sold separately, Cat. No. 1010003) |
| Accuracy Conductivity | 0.5% of reading ±1 digit > 3 μS; 0.5% of reading ±0.01 μS ≤ 3 μS |
| Accuracy Resistivity | 0.5% of reading ±1 digit |
| Accuracy Salinity | 0.5% of reading ±1 digit |
| Accuracy Tds | 0.5% of reading ±1 digit |
| Accuracy Temperature | ±0.1°C |
| Alarm Output | High/low limit alarm, calibration due alarm |
| Backlight Option | Yes, selectable |
| Battery Life | 800 hr. |
| Battery Type | 4 x AA (included) |
| Calibration | Conductivity with calibration editing option and temperature |
| Calibration Points Conductivity | 5 |
| Cell Constant | 0.001 to 199.9cm-1 |
| Certifications Compliance | CE, TUV 3-1, FCC Class A |
| Channels | 1 |
| Compatible Probes | 2-cell or 4-cell conductivity sensors with built-in temperature |
| Data Management Details | Transfer single, range or all data points to printer or computer |
| Data Points | 5000 with date and time stamp |
| Description | Orion Star A322 conductivity/TDS/salinity/resistivity portable meter |
| Dimensions LxWxH | 24 x 10 x 6.5 cm (9.5 x 3.9 x 2.6 in.) |
| Display Type | Graphic LCD with Backlight |
| Includes | Star A322 conductivity meter, 4 AA batteries, literature CD, printed quick start guide, computer interface cable and meter test certificate |
| Inputs | 8 pin MiniDIN (conductivity sensor with built-in temperature) |
| IP Rating | IP67 |
| Keypad | Comprehensive with menu-specific function keys and dual purpose scroll/shortcut keys |
| Languages | English, Spanish, French, Italian, German and Chinese; Portuguese and Korean available with software update |
| Log Function Type | Automatic data logging with Auto-Read and Timed measure modes; manual data logging with Continuous m |
| Measurement Modes | Conductivity, TDS, Salinity, Resistivity with Temperature |
| Memory | Non-volatile memory preserves data log, calibration log and meter settings |
| Methods | 10 per channel with password protection |
| Model | Orion Star A322 Conductivity/TDS/Salinity/Resistivity/Temperature Portable Meter |
| Outputs | USB, RS232 |
| Power Supply | 4 AA batteries (included) or universal AC adapter (sold separately) |
| Probe Type | Conductivity sensor (purchase separately) |
| Range Conductivity | 0.001 μS/cm to 3000 mS/cm |
| Range Resistivity | 2 ohm to 100.0 megohm |
| Range Salinity | 0.06 to 80.00 psu, 0.05 to 42.00 ppt |
| Relative Humidity Range | 5 to 85%, non-condensing |
| Resolution Conductivity | 0.001 μS minimum, auto ranging up to 4 significant digits |
| Resolution Resistivity | 1 ohm or 0.1 megohm, auto ranging |
| Resolution Salinity | 0.01 psu or 0.01 ppt minimum, auto ranging |
| Resolution Tds | 0.001 ppm minimum, auto ranging up to 4 significant digits |
| Resolution Temperature | 0.1°C (0.1°F) |
| Salinity Measurement Modes | Practical salinity (psu) or natural sea water (ppt) |
| Stability | Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting |
| Tds Factor Range | Linear (0.02 to 9.99) |
| Temperature Compensation | Linear, nLFn (non-linear ultra pure water), nLFu (non-linear ultra pure degassed water), EP (off wit |
| Temperature English Operating | 41°F to 113°F (ambient) |
| Temperature Metric Operating | 5°C to 45°C (ambient) |
| Temperature Metric Reference | 5, 10, 15, 20, 25°C |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Temperature Range Metric | -5°C to +105°C |
| Temperature Selection | Manual or automatic with ATC temperature probe |
| Unit Size | Each |
| Warranty | 3 Year Meter |
| Weight English | 1.2 lb. |
| Weight Metric | 0.5 kg |

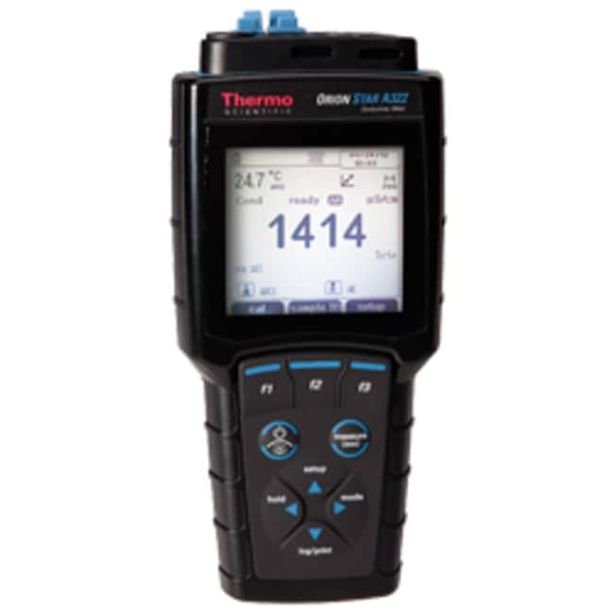

Get high accuracy and premium performance everywhere you need it with the Thermo Scientific™ Orion Star™ A322 Conductivity Portable Meter. This instrument is designed for a wide range of conductivity, total dissolved solids (TDS), salinity, resistivity and temperature testing and field applications. Evaluate samples in the most demanding locations using this waterproof meter with IP67-rated housing. Select linear, non-linear pure water or EP temperature compensation with 5°C, 10°C, 15°C, 20°C or 25°C reference temperatures. Log up to 5000 data point sets with time/date stamp and transfer to a printer or computer.
Take your measurements at the source with our premium line of portable meters. The Thermo Scientific Orion Star A322 conductivity portable meter offers an information-rich screen and user-friendly operation. This rugged, waterproof portable meter is ready to tackle the elements with you. Orion Star A322 conductivity portable meters are designed to be easy-to-use, dependable field meters that offer advanced features and functions including a 5000 point date log with sample ID and user ID options, calibration and high/low limit alarms and password-protected measurement methods.
- Measure conductivity, TDS, salinity or resistivity with temperature
- Perform up to a five point conductivity calibration with calibration editing option that allows individual points to be fixed without a full recalibration
- Auto-ranging conductivity values offer consistent readings across entire measurement range without need to recalibrate
- Use linear, non-linear, EP (USP) or off conductivity temperature compensation with 5°C, 10°C, 15°C, 20°C or 25°C reference temperatures
- Informative, easy-to-read backlit graphic display with clear onscreen instructions simplifies operation
- Capture your critical readings with measurement stability indicator and selectable read modes – Auto-Read holds a stable reading, Continuous shows changing readings with hold option and Timed logs data at specific intervals
- Data log collects and date/time stamps up to 5000 measurement sets with optional sample ID and user ID
- Calibration log stores ten most recent calibrations
- Non-volatile meter memory ensures your data and settings are protected, even with loss of power
- Orion Star Com software facilitates data transfer to a computer via USB or RS232 connections
- Flexible power options with AA batteries or optional universal power adapter
- IP67-rated housing is waterproof for rugged field operation
- Meter kits include hard-sided field case and protective meter armor with electrode holders, adjustable wrist/belt strap and built-in meter stand
- Meters offer CE, TUV 3-in-1 and FCC Class A certifications and 3-year replacement warranty
Disclaimer to internal research use restriction:
Any restrictions on the purchaser to utilize the product(s) for internal research purposes only does not apply to the product(s) on the web pages associated with this statement.
-
Orion STARA3220 Orion Star A322 conductivity portable meter with batteries$1,145.63
-
-
-
-
