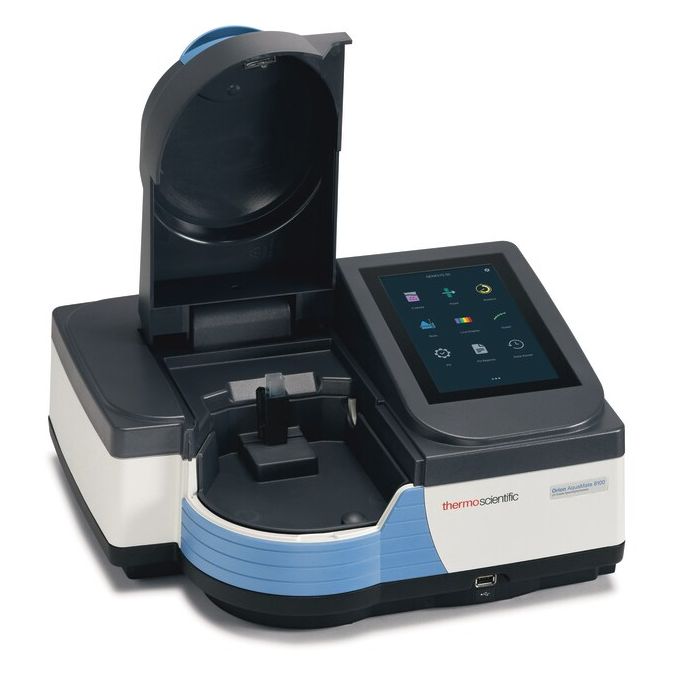

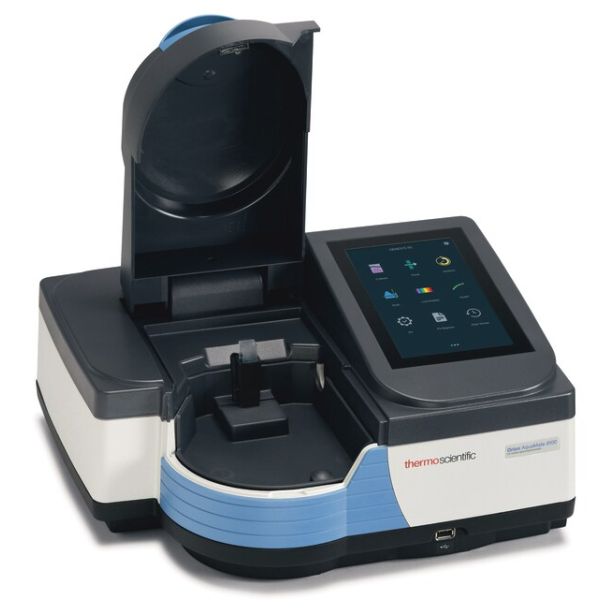

Thermo Scientific AQ8100 AQUAMATE 8100 UV-VIS SPECTRO NA EU UK
SKU
AQ8100
$8,206.25
Optimized for your water analysis needs AquaMate 7100 Vis and AquaMate 8100 UV-Vis Spectrophotometers provide fast and reliable results
| Segment | WAI Lab |
|---|---|
| Unit | Water Analysis |
| Family | Lab Instruments |
| Class | Instrument |
| Major Code | Colorimetry/Turbidity Meters |
| Minor Code | LAM1- AquaMate |
| Baseline Flatness | ±0.002 A |
| Certifications Compliance | CE / TUV |
| Compartments | Accessible from top, front or side Able to accommodate cells up to 100 mm cells Available accessory for test tubes up to 25 mm diameter and 150 mm height Removable, washable sample compartment liner with magnetic placement and hold-down |
| Connections | Single USB-A<br>Export data to network or PC via USB, Ethernet, or Wi-Fi USB adaptor, available<br>Print via USB, Ethernet or Wi-Fi USB adaptor available |
| Depth Metric | 35.5 cm |
| Description | AquaMate 8100 UV-Vis Spectrophotometer with North America, European and UK Power cord |
| Detector Type | Dual Silicon Photodiodes |
| Dimensions LxWxH | 35.5 x 38.5 x 19.5 cm |
| Display | 7 in. High Definition Color Touchscreen, Fixed, 800 x 1280 pixels |
| Drift | <0.0005 A/hr. (At 500 nm after 1 hour warmup) |
| Electrical Requirements | External AC to DC converter. Voltage and Frequency (Hz) selected automatically, 100/240 V, 50/60 Hz |
| For Use With Application | Water and Waste Water Analysis |
| Height Metric | 19.5 cm |
| Includes | Test Tube Holder for vials and test tube from 12 to 25 mm OD, 10 mm square single-cell holder, AquaMate Water Analysis Methods Software, Snap-on Printer, Dust Cover, External Power Supply, North America power cable (NEMA 5-15), European power cable (CEE 7 |
| Interface | Glove friendly touch-screen |
| Keypad | Glove- friendly touchscreen |
| Lamp Life | >5 years typical |
| Length Metric | 35.5 cm |
| Noise | (RMS at 500 nm 60 consecutive measurements) ≤0.00020A at 0A at 260 and 500 nm ≤0.00030A at 1A at 260 and 500 nm ≤0.00040A at 2A at 260 and 500 nm |
| Optical Design | Double Beam |
| Photometric Accuracy | ±0.002 A at 0.5 A, ±0.004 A at 1.0 A, ±0.008 A at 2.0 A |
| Photometric Display | -3A to +5A |
| Photometric Range | -2A to +3.5A |
| Photometric Repeatability | ±0.001A at 1A measured at 1.0A at 546 nm |
| Printer Included | Snap-on printer included |
| Scan Speed | Slow, medium and fast - up to 1600 nm/min. |
| Spectral Bandwidth | 2 nm |
| Stray Light | < 1.0%T 198 nm (KCl) , <0.05%T at 220 nm (NaI), <0.03%T at 340 nm (NaNO2) |
| Type | UV-Vis Spectrophotometer |
| Unit Size | Each |
| Warranty | 1 Year |
| Wavelength Accuracy | ±0.5 nm |
| Wavelength Data Interval | 0.2 nm, 0.5 nm, 1 nm, 2 nm, 5 nm |
| Wavelength Range | 190 to 1100 nm |
| Wavelength Repeatability | < ±0.2 nm |
| Weight Metric | 7.5 kg |
| Width Metric | 38.5 cm |
Pre-programmed Methods:
- More than 260 preprogrammed methods offer easy and convenient measurements using Orion AQUAfast™, Merck™ or CHEMetrics™ chemistries
- Preprogrammed methods can also be adapted for new chemistries or operators can create their own custom methods and calibration curves
- Instruments allow a one-point adjustment on any preprogrammed method to correct for variations in batch reagent chemistries
Versatility:
- Glove friendly 7-inch touch screen controller
- Wide variety of vials sizes can be used, including 10mm square vials, 20 and 50mm rectangular vials and an adjustable round vial holder that accommodates vials and test tube from 12 to 25 mm OD
Verification:
- Performance verification tests ensure wavelength accuracy and instrument functionality
- Each verification report gives the time, date and instrument serial number in accordance with GLP and GMP
- Built-in wavelength accuracy test is compatible with either the internal lamp or external calibrated standards
- Built-in test methods for stray light, noise and resolution are available to validate instrument performance further
