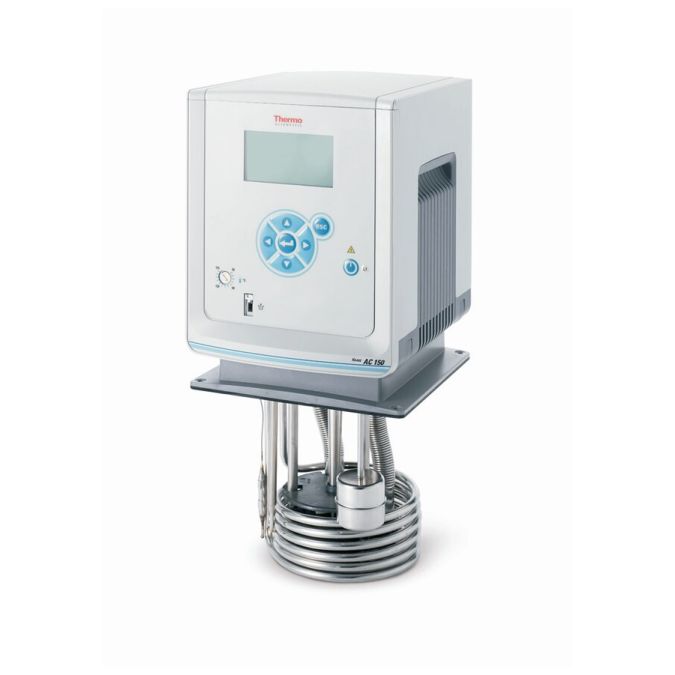

Thermo Scientific 1550006 AC150 100V
SKU
1550006
$2,685.18
AC150 is ideal when applications require greater pumping performance, ramp programming, application alarms and temperature ranges from -50° to +150°C.
| Segment | Baths/Chillers/Heat Exchangers |
|---|---|
| Unit | Temp Control |
| Family | Bath/Circulators |
| Class | Equipment |
| Major Code | AC |
| Minor Code | AC 150 |
| Certifications/Compliance | CSA, RoHS, CE marked, UL listed |
| Circulators Communications | USB, RS232, RS485, Ethernet/LAN, Analog I/O |
| Dimensions LxWxH | 7.8 x 6.4 x 14.6 in. (19.9 x 16.5 x 37.2 cm) |
| Electrical Requirements | 100 V 50/60 Hz |
| Flow Rate | 20 L/min. |
| Frequency | 50/60 Hz |
| Heating Capacity | 2 kW/1.2 kW |
| Height English | 14.6 in. |
| Height Metric | 37.2 cm |
| Length English | 7.8 in. |
| Length Metric | 19.9 cm |
| Max Pressure | 475 mbar/6.89 psi |
| Max Suction | 330 mbar/4.85 psi |
| Model | AC150 |
| Safety Class | 3/FL |
| Temperature Range | 13°C to 200°C |
| Temperature Stability | 0.01°C |
| Voltage | 100 V |
| Weight English | 9.25 lb. |
| Weight Metric | 4.2 kg |
| Width English | 6.4 in. |
| Width Metric | 16.5 cm |
| Unit Size | Each |
Thermo Scientific™ AC150 is ideal when applications require greater pumping performance, ramp programming, application alarms and temperature ranges from 13° to 200°C. Features include an enhanced digital display and easy–to–use touchpad settings, allowing you to easily tune the temperature to meet your specific application requirements.
- Max. temperature: 200°C
- Low-liquid level alarm for Safety Class III
- Automatic controller shutdown at detection of excessive high temperature, low liquid level or motor overload
- USB communication port and options for RS-232, RS-485, Ethernet/LAN, Analog I/O
- Programmable application temperature alarm with user selected alarm, go-safe-state or shut off option
- Self-Tuning PID controller for optimized temperature control
- Five programmable set point temperatures
- RTA (Real Temperature Adjustment) for calibration
- Internal or external temperature control mode (Remote Sensor, NAMUR type)
- Pump speed adjustment to three levels for turbulance control
- Powerful force and suction pump for external open and closed applications
- Three languages (English, German, French)
- Change digital display resolution between 0.1 and 0.01 and between °C — °F — °K
- Acoustic and optical alarm
- Auto-Restart feature after power failure
Includes:8mm and 12mm hose barbs with bridge (–0026, –0029, –0021 only), pump plug for external circulation, 6ft. power cord.
- Warranty varies by country, please contact us for details
