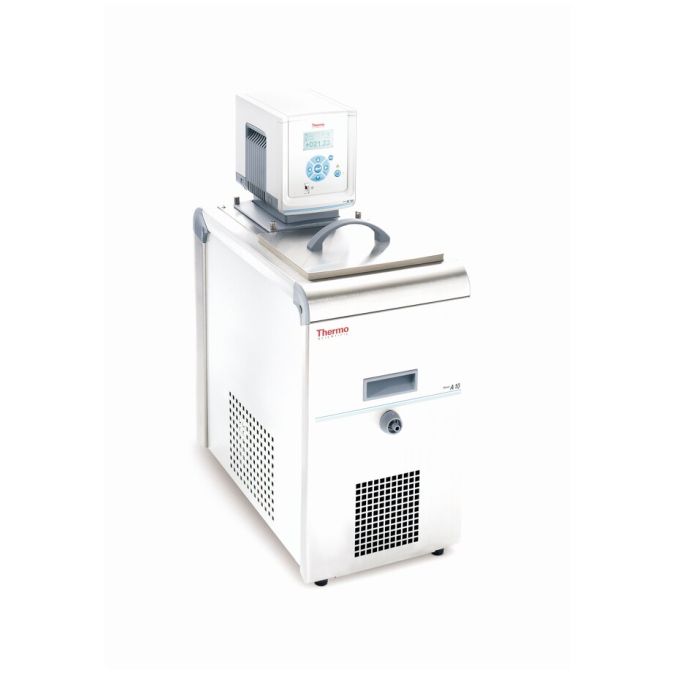

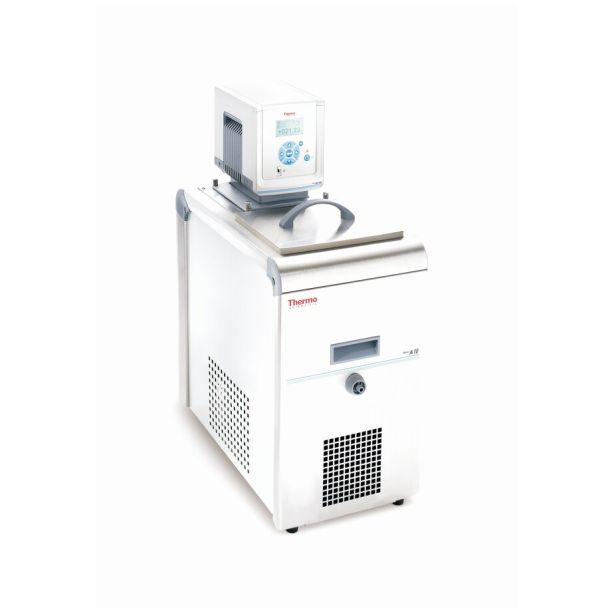

Thermo Scientific 1525108 SC100-A10 115V
SKU
1525108
$4,787.92
A10 refrigerated bath circulators provide efficient cooling for open and closed applications, with temperatures ranging from -10° to +100°C and 6L maximum bath volume.
| Segment | Baths/Chillers/Heat Exchangers |
|---|---|
| Unit | Temp Control |
| Family | Bath/Circulators |
| Class | Equipment |
| Major Code | Arctic |
| Minor Code | A 10 |
| Capacity Metric | 6 L |
| Capacity English | 1.58 gal. |
| Certifications/Compliance | CE/ROHS/WEEE |
| Circulators Communications | Digital |
| Controller Type | SC100 |
| Cooling Capacity | 240 W |
| English Interior | 5.9 in. |
| Metric Interior | 15 cm |
| Dimensions LxWxH | 16.3 x 8.7 x 24.9 in. (41.4 x 22 x 63.2 cm) |
| Electrical Requirements | 115 V 60 Hz |
| Flow Rate | 17 L/min. |
| Frequency | 60 Hz |
| Height English | 24.9 in. |
| Height Metric | 63.2 cm |
| Length English | 16.3 in. |
| English Interior | 4.9 in. |
| Length Metric | 41.4 cm |
| Metric Interior | 12.4 cm |
| Max Pressure | 300 mbar/4.35 psi |
| Pump Type | Force Pump, Suction Pump |
| Safety Class | 1/NFL |
| Temperature Range | -10°C to +100°C |
| Temperature Stability | 0.02°C |
| Voltage | 115 V |
| Weight English | 60.6 lb. |
| Weight Metric | 27.5 kg |
| Width English | 8.7 in. |
| Interior Width English | 5.4 in. |
| Width Metric | 22 cm |
| Interior Width Metric | 13.7 cm |
| Unit Size | Each |
Thermo Scientific™ A10 refrigerated bath circulators provide efficient cooling for open and closed applications, with temperatures ranging from -10° to +100°C and maximum bath volume of 6 liters. Powerful bath circulators with a stainless-steel reservoir can be configured with the controller that best meets circulation and temperature ranges for your application.
Optional force/suction pumps and sophisticated digital control allow you to ensure accuracy and reproducibility. Choose from the STANDARD, ADVANCED or PREMIUM controllers to create the perfect fit for your application.- Energy-saving feature limits power consumption: tight control of cooling capacity dependent on application needs
- Small refrigeration circulators are optimized for small footprint and low noise
- Robust stainless-steel baths
- The controller can be turned to 90° on all sides of the bath for optimal viewing
- External circulation set included for plumbing connection M16×1, 0.25 NPT male, 0.375in. O.D.
- Three-side ventilation concept: up to two sides can be blocked with full refrigeration performance and no degradation of equipment
- Draining port at the front
- Integrated handles
- CFC-free refrigerant
Includes:
Communication cables, bridge with gasket and thumbscrews, fittings, clamps, pump plug for external circulation, 6ft. power cord, bath cover
Recommended for:
- Calibration
- Bioreactors
- Rotary Evaporators
- Condensers
- Sample/Material Testing
- Sample/Material Preparation
- Warranty varies by country, please contact us for details
