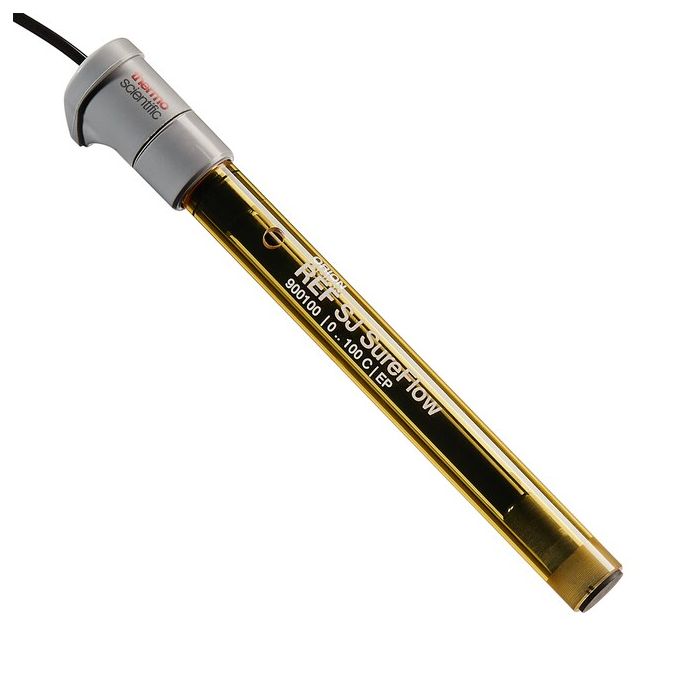

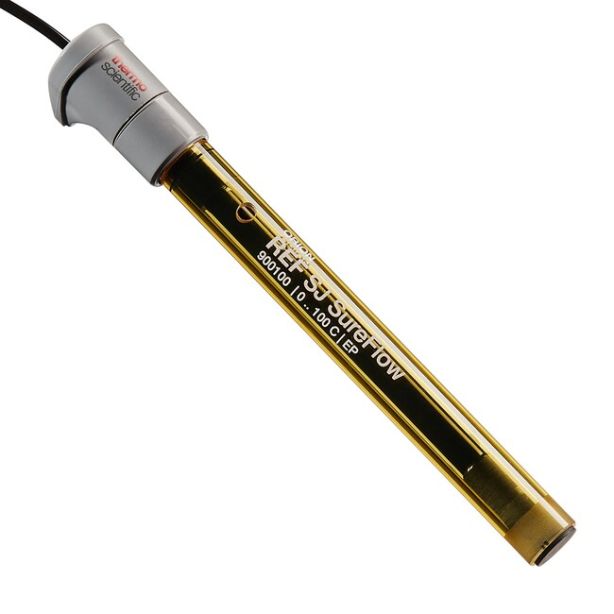

Orion 900100 S/J REFERENCE ELECTRODE
SKU
900100
$271.38
Attain stable, drift-free reference measurements using a sure-flow electrode with its unique free-flowing liquid-to-liquid junction.
Segment | WAI Lab |
---|---|
Unit | Water Analysis |
Family | Lab Electrodes |
Class | Consumables |
Major Code | ISE Sensors |
Minor Code | LIS2- ISE Sensors |
Description | 900100 Sure-Flow Reference Half Cell Electrode |
Diameter Metric Body | 12 mm |
Electrode | Single Junction Ref Electrode |
Filling Solution Type | Orion 900001 Filling Solution |
For Use With Application | ISE determinations |
Internal Reference | Ag/AgCl |
Junction | Sure-Flow Sleeve Junction |
Length Metric | 110 mm |
PH Range | 0 to 14 |
Reference Electrolyte | Equitransferent solution with Ag/AgCI |
Temperature Metric Operating | 0°C to 100°C |
Type | Reference Half-Cell Electrode |
Unit Size | Each |
The easy-to-clean junction never clogs, simply press the cap and flush the junction area, then release the cap and the junction is reset. Even the most problematic, dirty or viscous samples can be easily measured without a clogged junction.
Thermo Scientific™ Orion™ Single Junction Electrodes provide a reliable option for routine pH measurement. These silver chloride electrodes are available in a variety of styles and provide accurate measurements of typical samples.
Solutions required
Electrode fill solution
900001 Equitransferent solution with Ag/AgCl, 5 x 60 mL
For dilute samples < 0.2 M in total ionic strength and temperatures > 10 °C.
For dilute samples < 0.2 M in total ionic strength and temperatures > 10 °C.
900011 4 M KCl with Ag/AgCl, 5 x 60 mL
For concentrated samples and temperatures < 10 °C.
For concentrated samples and temperatures < 10 °C.
For complete details regarding the proper choice of reference electrode filling solution, refer to the user guide for the ion selective electrode or pH electrode to be used.
pH buffers
910168 pH 1.68 buffer, NIST traceable, 475 mL
910104 pH 4.01 buffer, color coded red, NIST traceable, 475 mL
910105 pH 5.00 buffer, color coded orange, NIST traceable, 475 mL
910686 pH 6.86 buffer, DIN standard, NIST traceable, 475 mL
910107 pH 7.00 buffer, color coded yellow, NIST traceable, 475 mL
910918 pH 9.18 buffer, DIN standard, NIST traceable, 475 mL
910110 pH 10.01 buffer, color coded blue, NIST traceable, 475 mL
910112 pH 12.46 buffer, NIST traceable, 475 mL
810199 All-in-One ROSS pH buffer kit, includes pH 4.01, 7.00 and 10.01 buffers, 475ml each ROSS pH
electrode storage solution, 475 ml, pH electrode cleaning solution C, 30 ml and 12 mm electrode
storage bottle
electrode storage solution, 475 ml, pH electrode cleaning solution C, 30 ml and 12 mm electrode
storage bottle
pH cleaning solution kit
900020 Cleaning solution A and C, 30 ml each. B and D, 60 ml each
Items included with
810007 ROSS pH electrode fill solution 60 mL 1 bottle
Warranty period
12 months from date of purchase
