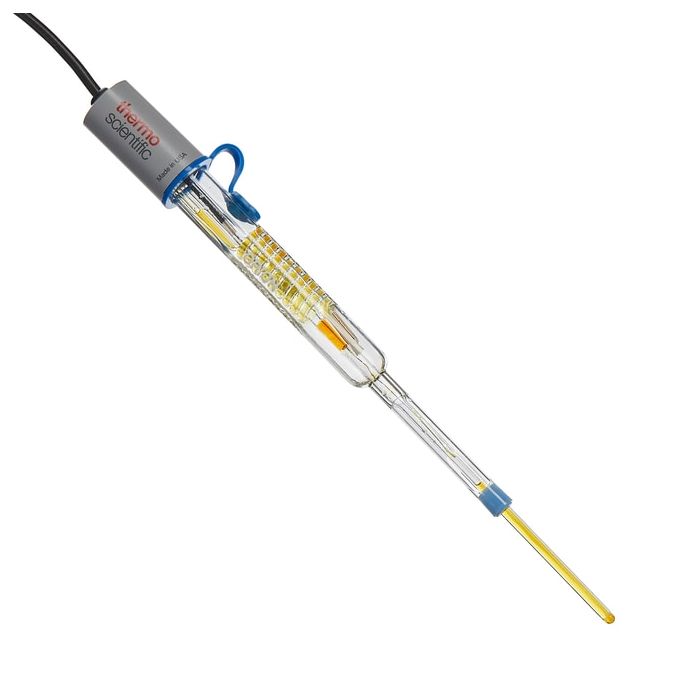

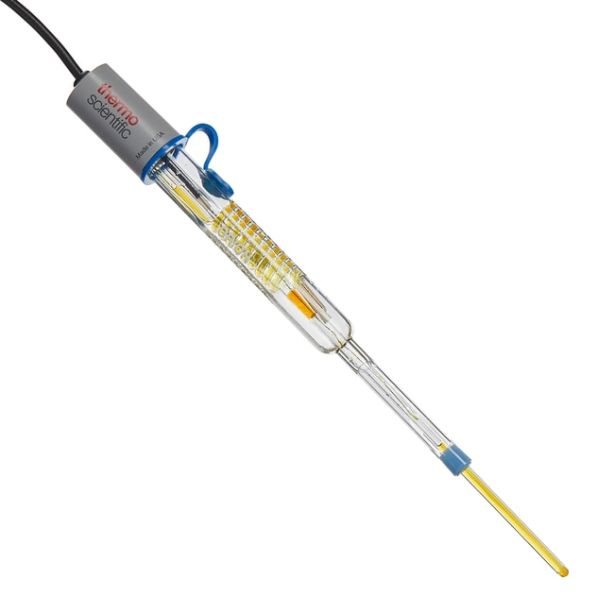

Orion 8220BNWP ROSS PH MICRO ELECTRODE

SKU

8220BNWP

Special Price $582.00 Regular Price $697.13

Measure small volumes down to 15 μL in 384 well plates with micro pH electrodes.

Specs & Details
Segment	WAI Lab
Unit	Water Analysis
Family	Lab Electrodes
Class	Consumables
Major Code	ROSS pH Sensors
Minor Code	LRP2- ROSS pH Sensors
Connector Types	WPBNC
Description	Combination pH Micro Electrode
Diameter Metric Cap	3 mm
Drift	Less than 0.002 pH units/day
Electrode	Glass double junction; Refillable
Junction	Glass Double
Length Metric	155 mm
Length Metric Cable	1 m
Material	Glass
Min Immersion	4.5mm
Storage Requirements	To ensure a quick response and free-flowing liquid junction the sensing element and reference junction must not be allowed to dry out. Short-term Storage (up to one week): Soak electrode in ROSS pH Electrode Storage Solution, Orion 810001 or use pH Electr
Temperature Metric Operating	0°C to 100°C
Unit Size	Each

Thermo Scientific™ Orion™ ROSS PerpHecT™ Micro Combination Electrodes are best suited for use in biological samples, where they are much more versatile than silver chloride electrodes. When used in conjunction with our Orion LogR technology, the glass bulb of the electrode will measure both pH and temperature at the same location, which allows for extremely accurate measurement in small volumes.

Orion™ ROSS Electrodes provide rapid accuracy and temperature response which goes hand in hand with the excellent stability of this reference system. Compatible with samples containing organic compounds, Tris buffers, enzymes, proteins, heavy metals, and other compounds.

Solutions required

Electrode fill solution

810007 ROSS pH electrode fill solution, 5 x 60 mL bottles

Electrode storage solution

810001 ROSS pH electrode storage solution, 475 mL bottle

pH buffers

910168 pH 1.68 buffer, NIST traceable, 475 mL

910104 pH 4.01 buffer, color coded red, NIST traceable, 475 mL

910105 pH 5.00 buffer, color coded orange, NIST traceable, 475 mL

910686 pH 6.86 buffer, DIN standard, NIST traceable, 475 mL

910107 pH 7.00 buffer, color coded yellow, NIST traceable, 475 mL

910918 pH 9.18 buffer, DIN standard, NIST traceable, 475 mL

910110 pH 10.01 buffer, color coded blue, NIST traceable, 475 mL

910112 pH 12.46 buffer, NIST traceable, 475 mL

810199 All-in-One ROSS pH buffer kit, includes pH 4.01, 7.00 and 10.01 buffers, 475ml each ROSS pH
electrode storage solution, 475 ml, pH electrode cleaning solution C, 30 ml and 12 mm electrode
storage bottle

pH cleaning solution kit

900020 Cleaning solution A and C, 30 ml each. B and D, 60 ml each

Items included with

810007 ROSS pH electrode fill solution 60 mL 1 bottle

Warranty period

12 months from date of purchase
