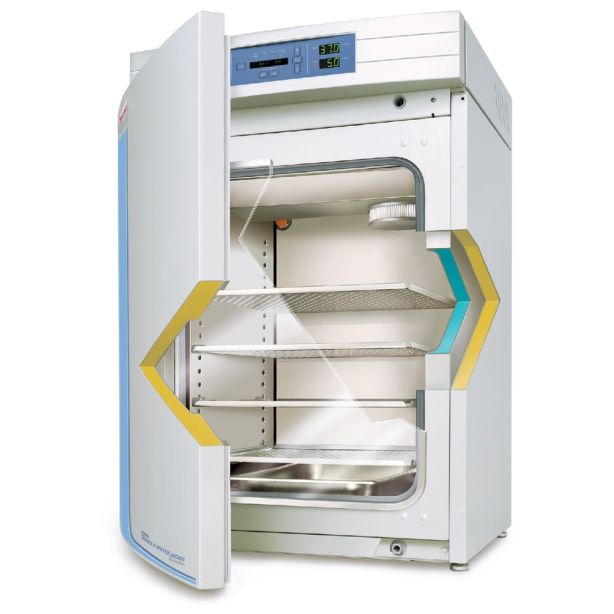

Forma™ Series II Water-Jacketed General Purpose CO2 Incubator with 184 L Chamber and Stainless Steel Interior

Thermo Scientific™ Forma™ Series II Water Jacketed CO₂ Incubators combine precise CO₂ control, outstanding temperature stability, and excellent parameter recovery, with innovative continuous contamination control technology. Maximum thermal stability and quick recovery are enabled with our unique triple wall construction, providing optimal protection against temperature loss in the event of an unexpected power outage.

Water Jacketed Chamber

The 184 L (6.5 cu. ft.) high capacity chamber provides outstanding culturing space
Standard right hand door swing, able to be converted to a left hand swing
Polished stainless steel interior with coved corners is easy-to-clean with removable humidity pan
Unique triple wall construction provides outstanding temperature uniformity and stability
Exclusive, heated dual pane inner glass door is designed to minimize condensation
In-chamber fan gently distributes air throughout the chamber which is designed ensure homogeneous conditions
Sturdy stainless steel shelves and supports can be removed without tools for easy cleaning or adjustment

ISO Class 5 HEPA Filtration Airflow System

In-chamber HEPA air filtration continuously filters entire chamber volume every 60 seconds
Reaches ISO Class 5 cleanroom air quality in only 5 minutes after door opening
Continuous protection by minimizing ability for contaminants to settle on interior surfaces

In situ Sensors and Probes Designed for Precise Monitoring

Choice of TC (thermal conductivity) CO₂ sensor for long, reliable operation or IR (infrared) CO₂ sensor for monitoring when humidity and temperature are less predictable
Dual temperature probes with over temperature protection
Optional rH display for monitoring humidity levels (to prevent dry-outs) requires factory installed catalog number 190643

Enviro-Scan Microprocessor Control

Easy- to-use, alphanumeric LED display
Flexible, intuitive controls with message center including process and alarm status messages
Configurable audible on/off, access code, tracking low and high alarms
