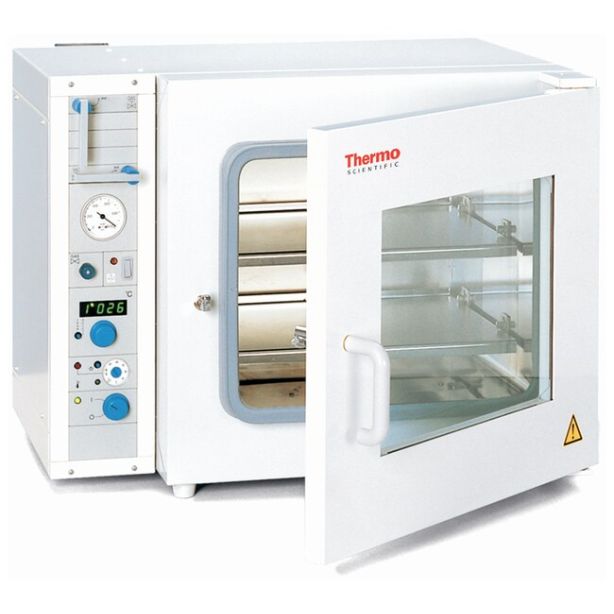

Vacutherm Vacuum Heating and Drying Ovens

Dry up to six times faster than when using conventional units. Thermo Scientific™ Vacutherm Vacuum Heating and Drying Ovens provide outstanding capabilities for fast and gentle drying. Excellent heat transfer and fast heating up minimize operation time. A double-paned safety-glass front window provides unique implosion protection. Modular system allows application-specific configurations through a wide range of equipment options. Temperature and pressure documentation is available to meet ISO 9000 and GLP/GMP requirements.

User-friendly Kelvitron™ microprocessor (jacket-heated ovens) or Digicon multi-channel controller (shelf-heated ovens)
Analog pressure display
Overtemperature sensor protects oven and sample
Double-pane safety glass doors
Stainless-steel vacuum fittings, tubing and ball valve
Inert gas connection with precision valve and overpressure safety valve precisely releases non-flammable, non-toxic gasses
Standard DN25 access port in rear wall

Jacket-heated Models

Operate at temperatures up to 200°C

Shelf-heated Models

Operate at temperatures up to 300°C, on option even up to 400°C
For 300°C – unit requires a factory installed Digicon S Controller part # 51900195
For 400°C - 51023263 unit requires a factory installed Digicon S Controller part # 51900196
For 400°C - 51026264 unit requires a factory installed Digicon S Controller part # 51900197
Ensure an optimum heat transfer

Recommended for:

Drying of heat-sensitive materials
Residue-free drying of intricately designed parts
Targeted recovery of degassed products

Additional information:
For applications with flammable solvents, ask your sales representative for our BL version with additional safety features

Warranty: 2 years parts and labor
