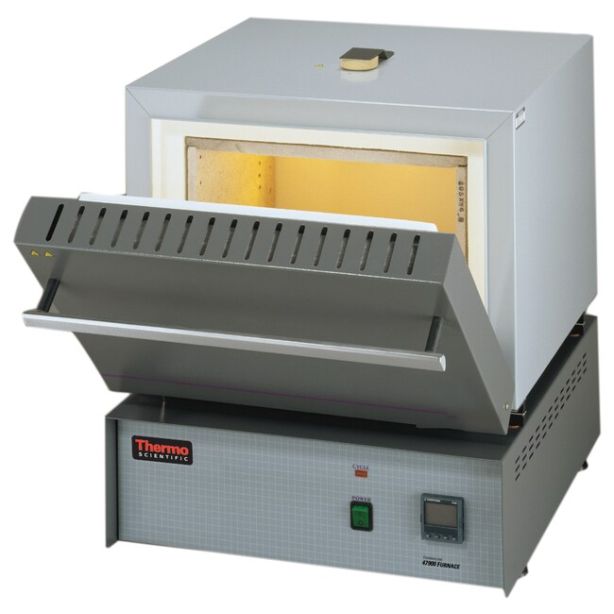

Thermolyne™ Premium Large Muffle Furnaces

Conduct industrial applications including ashing organic and inorganic samples and conducting gravimetric analysis with Thermo Scientific™ Thermolyne™ Premium Large Muffle Furnaces. Unit has four heating elements, which are located on the chamber top, bottom and sides for enhanced temperature uniformity. Built-in vent port removes undesirable contaminants and moisture to extend the life of the element and unit.

Four heating elements are located on the chamber top, bottom and sides for enhanced temperature uniformity
Built-in vent port removes undesirable contaminants and moisture to extend the life of the element and unit
Rear of the chamber incorporates a 0.95cm (0.38in.) dia. port for monitoring chamber temperatures with independent measuring devices
Optional stainless steel shelf doubles load capacity (maximum temperature of 900°C)
Door safety switch stops power to heating elements when door opens
Thermocouple break protection cuts power to the heating elements, preventing a thermocouple failure runaway condition
Furnaces with B1, C1, and D1 control also use a mechanical overtemperature protection relay

Choice of Temperature Controllers

Digital single setpoint control (A1): Single display shows actual temperature or setpoint
Digital single setpoint control with single ramp to setpoint and a dwell (B1): Single display shows actual temperature or setpoint
Digital programmable control with one stored program of eight segments (C1)
Digital programmable control with four stored programs, 16 segments per program (D1): Controller includes RS-232 communications

Includes:

Models F6010 and F6018 include a cord and plug set.

Requires:

All except Models F6010 and F6018 require a conduit connection.

Warranty: 1 year
