THERMO SPD140P1-230 SPD140DDA P1 Kit

Evaporate strong acids, bases and aggressive organic solvents with the Thermo Scientific™ SpeedVac Modular Vacuum Concentrators. Approved for combinatorial chemistry, these concentrators incorporate an intuitive programmable user display for enhanced usability.

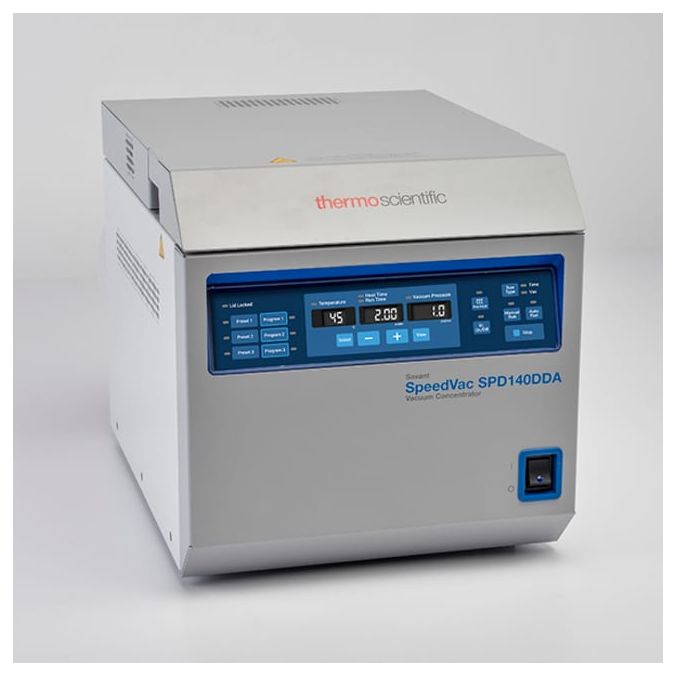

SpeedVac SPD140DDA is a medium capacity vacuum concentrator used with a wide variety of solvents and offer resistance to TFA, DSMO and other aggressive solvents used in combinatorial chemistry applications. It is available in kit for ease of ordering.

SPD140DDA Features:

• All the product features of SPD130DLX PLUS:
• Radiant lamps within the chamber
• Heated lid for processing high boiling points (DMSO,DMF)
• Independent timers for both heat and run
• Audible alarm to alert user when operation is finished
• Built-in vacuum gauge and vacuum display
• Wider vapor port and tubing for enhanced vapor throughput - reducing drying times
• Adjustable vacuum level for preventing bumping of difficult solvent mixtures and optimizing drying times
• -5°C Cold Trap specially designed for trapping high boiling point solvents

Solvent and Solvent Combinations for SPD140P1 KIT

• Acetic acid
• Ammonium hydroxide
• Formic acid
• Hydrochloric acid
• TFA
• Methylene chloride and TFA
• Acetone and HCL
• Methylene chloride and MEOH
• DMSO and methanol

Solvent Combinations for SPD140 P2 KIT

• DMSO
• DMF
• Toluene

SPD140 P1 includes:

• Acid-Resistant SpeedVac™ Vacuum Concentrator
• -104°C Ultra-Low Temperature Refrigerated Vapor Trap
• Oil-Free ETFE/PFA 4-Headed Pump
• Rotor RH40-12, 12x 75mm holds 40
• Glass Condensation Flask
• Tubing and Fitting Kit
• CryoCool™ Heat Transfer Fluid (1L)

SPD140P2 includes:

• Acid-Resistant SpeedVac™ Vacuum Concentrator
• -50°C Universal Vacuum Source
• 24 x 1 dram vials (15 x 45 mm) 4ml - dram vial Rotor (RH24-15)
• Chemical Trap
• Tubing and Fitting Kit
• Disposable Cartridge
• Glas Condensation Flask
• Vacuum Pump Lubricating Oil
• CryoCool™ Heat Transfer Fluid (1L)

SPD140 P1 and P2 kits are recommended for:

• Solid phase extractions
• Drying lipid extractions
• Flash chromatography fractions
• Solid phase synthesis cleavage solutions such as protein hydrolyzates and evaporating synthesis solids
• Compound management
• Evaporating dissolution solventsRotors are available for a wide variety of applications and sample formats. Please check the rotor list.

Typical applications SPD140DDA:

Requires:

• Drying lipid extraction
• Flash chromatography fractions
• Combinatorial Chemistry
• Solid phase synthesis cleavage solutions such as protein hydrolyzates and evaporating synthesis solids
• Removing ethyl acetate from samples for CAT assay

• Drug metabolites in solid phase extracts
• Analyte elution solvents for evaporation
