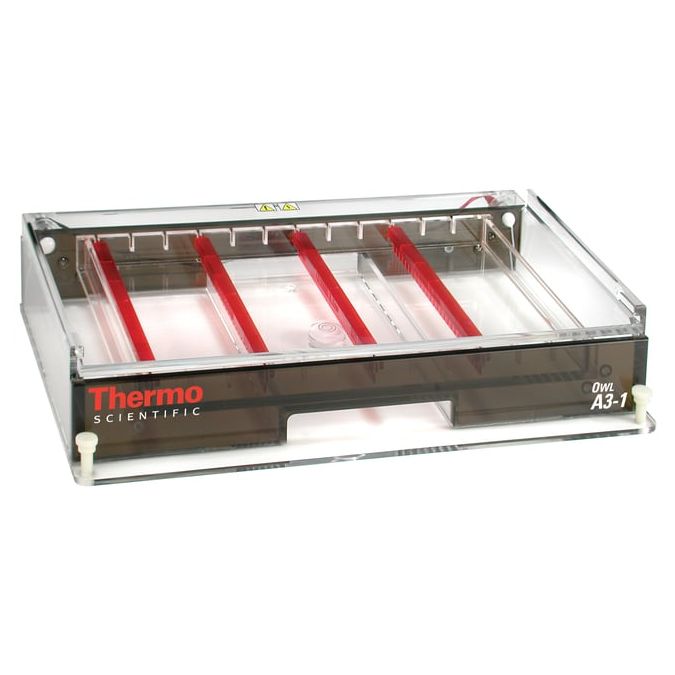

Thermo Scientific Owl A3-1 GATOR WIDE FORMAT HORIZONTAL

Specs & Details
Segment	Lab Equipment Essentials
Unit	Cold Storage
Family	LEE
Class	Equipment
Major Code	Electrophoresis
Minor Code	Horizontal Gel Box
Certifications/Compliance	CE marked
Description	Gel size: 23 x 40cm; Buffer volume: 4.5L; L x W x H: 53 x 32 x 11cm
Dimensions LxWxH	20.63 x 12.5 x 4.25 in. (53 x 32 x 11 cm)
Gel Size	23 x 40 cm
Height English	4.25 in.
Height Metric	11 cm
Length English	20.63 in.
Length Metric	53 cm
Length Metric Gel	40 cm
Max Voltage	250 V
Product Line	Owl
Sample Size	25 to 600
Type	Large Gel Electrophoresis System
Unit Size	Each
Volume Metric Buffer	4.5 L
Width English	12.5 in.
Width Metric	32 cm
Width Metric Gel	23 cm

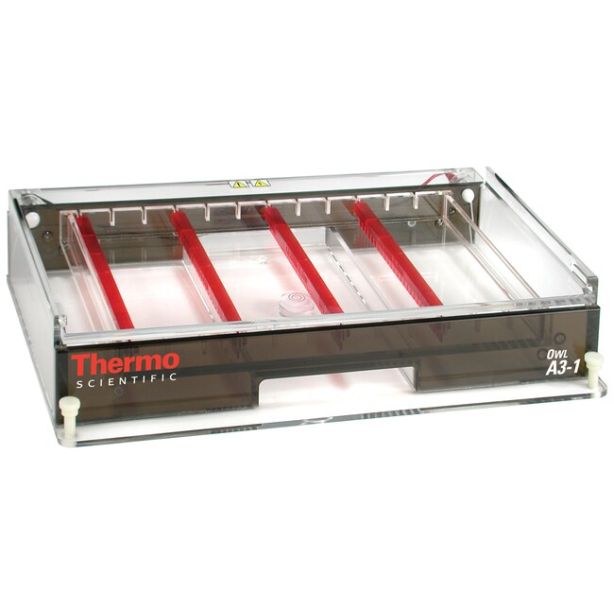

Conduct plant genomics studies with Thermo Scientific™ Owl™ A3-1 Large-Gel Electrophoresis System. Features:

Horizontal system can run from 25 to 600 samples on one gel
Gel can be cast in varying lengths to help conserve agarose when fewer samples need to be run
Built-in buffer exchange ports allow for buffer recirculation on extended runs
UVT gel tray has gasketed end gates for leakproof seal without tape
Built-in leveling ensures flat, uniformly thick gels
Large number of comb slots provides sample number and resolving distance flexibility
Microwell-format combs provide fast, error-free sample loading with a multichannel pipetter
Samples may be loaded directly from a 96-well plate, 8 or 12 at a time

Ordrring Information:

Customized combs are available (Order SKU # XCM). Please contact your Customer Service or Sales Representative for further details.

Includes:

Buffer chamber with three-point leveling base, SuperSafe™ lid with attached power supply leads, UVT gel tray, four combs (two 25- and two 50-well), built-in buffer exchange ports and bubble level
