Thermo Scientific Nuova SP135935Q SUPER NUOVA SP 4POS 120V
SKU
SP135935Q
$2,815.31
Perform life science and biotechnology applications with the help of these digital stirring hotplates, which offer four independently-controlled stirring positions.
| Segment | Lab Equipment Essentials |
|---|---|
| Unit | Cold Storage |
| Family | LEE |
| Class | Equipment |
| Major Code | Stirrers and Hot Plates |
| Minor Code | Square Top |
| Amperage | 11.8 A |
| Certifications Compliance | Certificate of Analysis (COA), Certificate of Conformance (COC) |
| Controller Type | Digital |
| Description | 35 lb. load capacity |
| Dimensions LxWxH | 10.25 in. x 10.25 in. |
| Display | Digital |
| Electrical Requirements | 120 V 50/60 Hz |
| Frequency | 50/60 Hz |
| Height English | 4 in. |
| Height Metric | 10.2 cm |
| Includes | 6 in. Type K Probe, Detachable Line Cord and Plug, Stir Bar |
| Length English | 16.2 in. |
| Length Metric | 41.1 cm |
| Max Sample Load | 16 kg |
| No Of Positions | Multiple |
| Shape | Square |
| Shipping Weight English | 20.5 lb. |
| Shipping Weight Metric | 9.3 kg |
| Size | 10.25 x 10.25 in. |
| Stirring Range | 50 to 1200 rpm |
| Temperature Metric | Ambient +1° to 370°C |
| Top Plate Material | Ceramic |
| Type | Stirring Hotplate, Stirrer |
| Unit Size | Each |
| Voltage | 120 V |
| Wattage | 1400 w |
| Weight English | 20.5 lb. |
| Weight Metric | 9.3 kg |
| Width English | 11.3 in. |
| Width Metric | 28.7 cm |

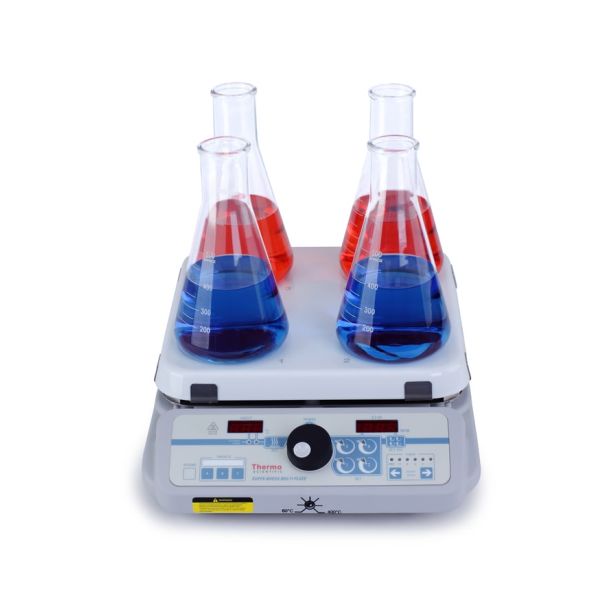

Perform life science and biotechnology applications with the help of Thermo Scientific™ Super-Nuova™ Multi-Position Digital Stirring Hotplates. These hotplates offer four independently-controlled stirring positions on one heated, ceramic top. Product includes 4-function memory and a low-temperature adjustment ideal for life science and biotechnology applications. These stirrers are designed for labs with multiple users and require high-volume processing with unmatched performance, safety and controls.
Operating Features
- Microprocessor control ensures accurate and stable setpoints for temperature and stirring speed
- Electronic feedback controls monitor either top plate surface or liquid temperature (when using external PTFE-coated probe, included) and adjust to setpoint
- Single control knob controls heat and speed; lock feature prevents accidental changes
- Digital display for temperature or rpm
- Powerful motor and magnetic system prevent magnetic decoupling
- Thermo Scientific™ Stir Trac™ breaking feature brings stir bar to an immediate stop for quick false removal and prevents runaway or decoupled stir bars
- Temperature adjusts in 1° increments
- Four user-defined temperature/speed memory keys recall settings
- Calibration mode allows remote probe to be calibrated to external standards; probe can be programmed as a system (probe, control, display) at any user-selected temperature
- Ceramic tops clean easily, resist chemicals and provide fast boiling time
- Can be used in 0° to 27°C, 80% relative humidity, noncondensing environment
- RS-232 port allows output of time count, temperature setpoint, top surface/remote probe temperature, stirring setpoint and actual speed
Safety Features
- Red HOT TOP warning light activates when heating surface is above 50°C (122°F); unit flashes HOT OFF until surface temperature falls to 50°C or below, even when heat control is turned off
- Adjustable overprotection circuit limits top plate temperature, prevents runaway conditions
- Rugged low-profile cast aluminum body provides stability and durability
- Unit design protects internal components from accidental spills
- Walk-away timer shuts off heating, stirring or both after preset user-defined interval
Includes:
- Detachable line cord and plug
- 6 in. Type K probe
- Stirring models also include stir bar
