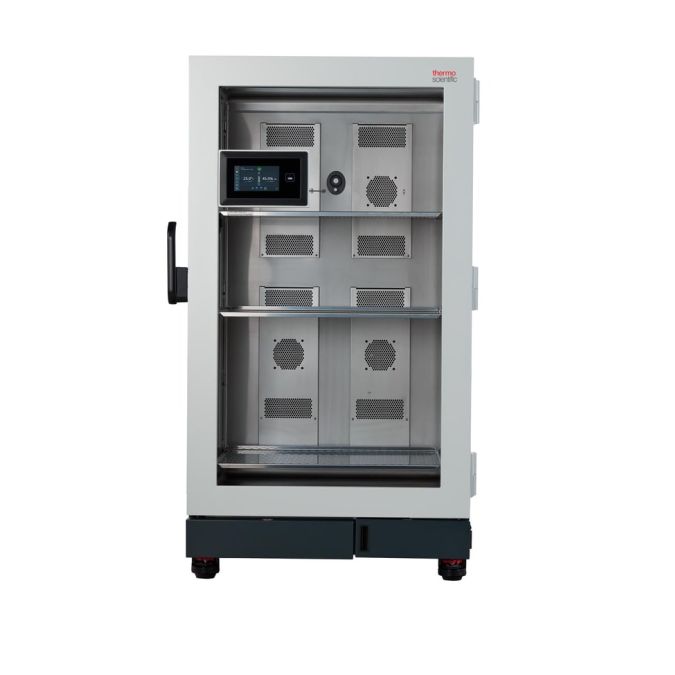

Thermo Scientific Heraeus ESG750 Stability chamber 750L, glass
SKU
ESG750
$26,343.75
Gain confidence in your product when testing stability and shelf life with robust Heratherm Stability chambers designed to meet a variety of quality control demands.
| Segment | Constant Temperature |
|---|---|
| Unit | CWS |
| Family | Environmental Chambers |
| Class | Equipment |
| Major Code | Stability |
| Minor Code | Stability - Large |
| Capacity English | 26.5 cu.ft. |
| Capacity English Shelf | 66.1 lbs |
| Capacity Metric | 750 L |
| Capacity Metric Shelf | 30 kg |
| Certifications/Compliance | UL, CE |
| Chamber Material | Powder-coated Cold Rolled Steel |
| Data Outputs | USB, Ethernet |
| Depth English | 34.84 in. |
| Depth English Interior | 24.8 in. |
| Depth Metric | 885 mm |
| Depth Metric Interior | 630 mm |
| Display | 7 in. touchscreen user interface |
| Door Style | Glass Door |
| Electrical Requirements | 100 - 240V, 50-60Hz, 1400W |
| Height English | 72.24 in. |
| Height English Interior | 57.09 in |
| Height Metric | 1835 mm |
| Height Metric Interior | 1450 mm |
| Humidity Range | 10 - 90% RH |
| Humidity Resolution | 0.1% RH |
| Lighting | No |
| Chamber Material | Powder-coated Cold Rolled Steel |
| No. of Casters | 4 |
| No. of Shelves | 3 |
| Plug Type | Nema 5-20P |
| Ports | 2 access ports |
| Programmability | Temperature and humidity ramping |
| Relative Humidity | 10 to 90% |
| Shelf Area English | 4.9 ft² |
| Shelf Area Metric | 0.46 m² |
| Shelf Material | Stainless Steel (304/1.4301) |
| Shipping Weight English | 820 lbs |
| Shipping Weight Metric | 372 kg |
| Temperature Control | Microprocessor - programmable |
| Temperature Range Metric | 0 to 70°C |
| Temperature Resolution | 0.1°C |
| Temperature Stability | ≤ ±0.1°C @ 20°C to 37°C |
| Temperature Uniformity | ≤ ±0.5°C @ 20°C to 37°C |
| Type | Humidity Chamber |
| Unit Size | Each |
| Voltage | 100/115/220/230 V |
| Warranty | 24 months |
| Water Consumption | 0.15 to 1 L per day |
| Water Resistivity | 0.05 - 1 MΩ |
| Wattage | 1400 W |
| Width English | 42.52 in. |
| Width English Interior | 33.07 in. |
| Width English Shelf | 22.6 in. |
| Width Metric | 1080 mm |
| Width Metric Interior | 840 mm |
| Width Metric Shelf | 795 mm |
- Broad relative humidity range to cover many applications, including humidity levels below ambient.
- Environmentally friendly water-efficient humidification system.
- Minimal condensate in standard applications.
- Integrated water tank; fixed water connection for in-house purified water option available.
- Energy-efficient Peltier technology supports temperature stability and uniformity with lower energy usage compared to traditional compressors and without hazardous refrigerant.
- Two access ports for independent data capture, and internal documentation of set and actual parameter values, along with event log to meet 21 CFR Part 11 requirements for process documentation.
- Data retrieval via USB stick, Ethernet connection, or Thermo Cloud via OPC-UA standard.
- Sample and process protection: Assign personalized access with user IDs; restrict access with standard door lock, or optional automated door lock; various alarm options to prevent operator of process issues.
- Intuitive touchscreen interface with easy programmability of temperature cycles and process duration.
- Simplified setup with no technician required; install using standard power cord.
- IQ/OQ qualifications and other services available; visit thermofisher.com/chamberservice.
- Inner glass door keeps environment stable, even when opening outer door. Glass door also available.
- Rounded corners and removable shelving offer easy cleaning to help prevent cross-contamination.
- Duplex interior electrical sockets for use of stirrers, shakers or other equipment inside the chamber are available as a factory-installed option. Choose from a variety of country-specific sockets. (Ordered with separate order code)
