Thermo Scientific 266225044000 M150 LR 230/50 PD2 LL/LF RS232

Specs & Details
Segment	Baths/Chillers/Heat Exchangers
Unit	Temp Control
Family	Chillers
Class	Equipment
Major Code	Merlin
Minor Code	M 150
Certifications/Compliance	CE
Communications	RS232, Remote Start, low flow & low level alarms
Cooling Capacity	Up to 4282 watts
Description	M150 LR 230/50 PD2 LL/LF RS232
Electrical Requirements	230 V 50 Hz
Pump Capacity	2.5 gpm @ 60 psi (9.5 L/min. @ 4.2 bar)
Pump Type	PD2 (Positive Displacement Pump)
Refrigerant	R134A
Temperature Range	-15°C to +35°C
Temperature Stability	±0.1°C
Unit Size	Each

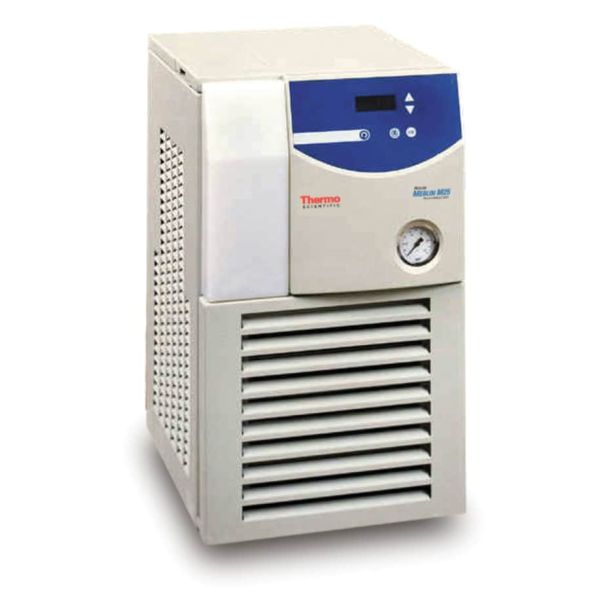

Save valuable space with compact, Thermo Scientific™ Merlin Low-Temperature Refrigerated Chillers. These extended-temperature chillers deliver a continuous supply of 1000 to 4300 watts of cooling capacity for critical applications.

Thermo Scientific Merlin recirculating chillers are ideal for applications requiring heat removal across a wide temperature range. Offering five cooling capacities with a temperature range from -15°C to +35°C, the Merlin chiller platform provides powerful cooling in a reliable and compact design. With a wide variety of options including a choice of pumps, communication packages, and Low-Level/Low-Flow indicators, Merlin recirculating chillers can be configured to meet a wide range of applcation requirements.

Global compliance ensures user safety
Easy–to–use intuitive controller
Translucent reservoir enables quick viewing of fluid level
Removable grille allows for quick and easy preventative maintenance

Recommended for:

Biotech
Pharmaceutical
Laser
Laboratory
Analytical instrumentation
Printing
Semiconductor
Industrial
Medical
