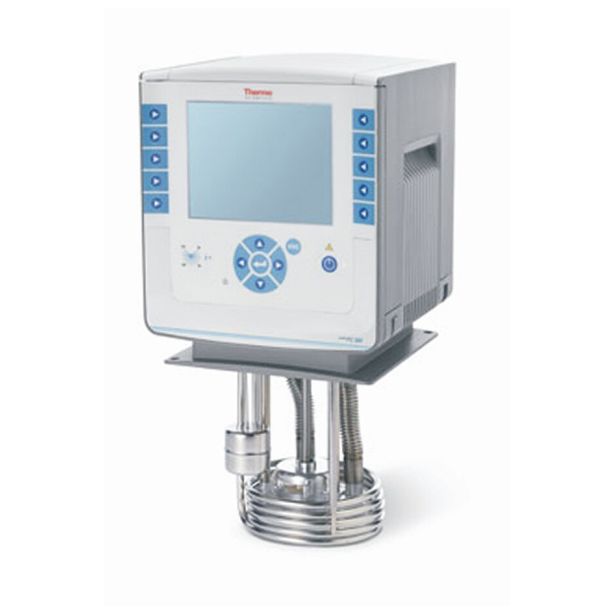

Thermo Scientific 1590005 PC300 200-230/50-60
SKU
1590005
$5,706.02
These circulators feature a 3.0Kw heater for rapid heatup, an all stainless-steel pump with ceramic rotors and extreme temperature performance ranging from -50° to +300°C.
| Segment | Baths/Chillers/Heat Exchangers |
|---|---|
| Unit | Temp Control |
| Family | Bath/Circulators |
| Class | Equipment |
| Major Code | PC |
| Minor Code | PC 300 |
| Certifications/Compliance | CSA, RoHS, CE marked, UL listed |
| Circulators Communications | USB |
| Dimensions LxWxH | 9.2 x 7.4 x 16.6 in. (23.3 x 18.9 x 42.1 cm) |
| Electrical Requirements | 200/230 V 50/60 Hz |
| Flow Rate | 24 L/min. |
| Frequency | 50/60 Hz |
| Heating Capacity | 3 kW |
| Height English | 16.6 in. |
| Height Metric | 42.1 cm |
| Length English | 9.2 in. |
| Length Metric | 23.3 cm |
| Max Pressure | 500 mbar/8.12 psi |
| Model | PC300 |
| Pump Type | Force Pump, Suction Pump |
| Temperature Maximum Metric | 300°C |
| Temperature Range | -50°C to +300°C |
| Temperature Stability | 0.01°C |
| Voltage | 200/230 V |
| Weight English | 10.4 lb. |
| Weight Metric | 4.7 kg |
| Width English | 7.4 in. |
| Width Metric | 18.9 cm |
| Unit Size | Each |
Thermo Scientific™ PC201 Immersion Circulators feature a 3.0Kw heater for faster time to temperature, an all stainless steel pump with ceramic rotors and offer extreme temperature performance ranging from -50° to +300°C. Features include an enhanced digital display and easy–to–use touchpad settings, allowing you to easily tune the temperature to meet your specific application requirements.
- Max. temperature: 300°C
- Temp. stability: 0.015
- 3.0kW heater for faster time to temperature
- All stainless-steel pump with ceramic rotors
- Force/suction pump with 560mbar pressure and 24L/min flow
- Heating capacity 1.2kW
- External T control via PT100 sensor port
- Application threshold alarms to safeguard experiments
- Temperature high and low limits
- Seven languages (English, German, French, Spanish, Italian, Chinese and Japanese)
- Ten ramp programs with edit during run or pause
- USB port for remote control
- Real-time clock
- Multifunction port connects
- Booster pump (1 bar extra)
- Booster heater (2kW extra)
- Auto refill device
- Magnetic/solenoid valve box (e.g. control tap-water cooling)
Ordering Information:
Includes 8mm and 12mm hose barbs with bridge (–0025 only), pump plug for external circulation, and 6ft. power cord.
