Thermo Scientific 1570022 PC200 100-115/50-60 W/ADJ BRDG
SKU
1570022
$5,202.54
These circulators are ideal for applications that require sophisticated control, multiple ramp programming and extreme temperature performance ranging from -50° to +200°C.
| Segment | Baths/Chillers/Heat Exchangers |
|---|---|
| Unit | Temp Control |
| Family | Bath/Circulators |
| Class | Equipment |
| Major Code | PC |
| Minor Code | PC 200 |
| Certifications/Compliance | CSA, RoHS, CE marked, UL listed |
| Circulators Communications | USB |
| Dimensions LxWxH | 9.2 x 7.4 x 16.6 in. (23.3 x 18.9 x 42.1 cm) |
| Electrical Requirements | 100/115 V 50/60 Hz |
| Flow Rate | 24 L/min. |
| Frequency | 50/60 Hz |
| Heating Capacity | 2 kW/1.2 kW |
| Height English | 16.6 in. |
| Height Metric | 42.1 cm |
| Length English | 9.2 in. |
| Length Metric | 23.3 cm |
| Max Pressure | 500 mbar/8.12 psi |
| Model | PC200 with bridge |
| Pump Type | Force Pump, Suction Pump |
| Safety Class | 3/FL |
| Temperature Range | 13°C to 300°C |
| Temperature Stability | 0.01°C |
| Voltage | 100/115V |
| Width English | 7.4 in. |
| Width Metric | 18.9 cm |
| Unit Size | Each |

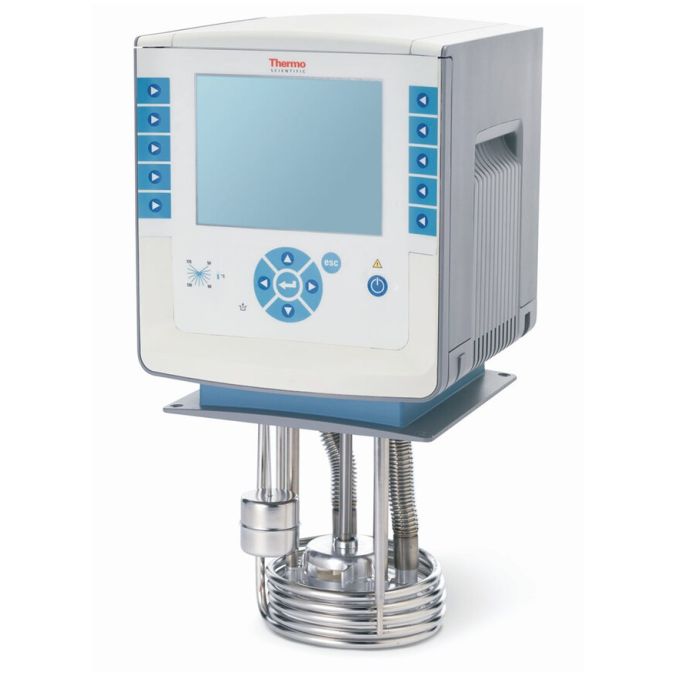

Thermo Scientific™ PC200 Immersion Circulators are ideal for applications that require sophisticated control, multiple ramp programming and extreme temperature performance ranging from 13° to 300°C. Features include an enhanced digital display and easy–to–use touchpad settings, allowing you to easily tune the temperature to meet your specific application requirements.
- Max. temperature: 300°C
- Temp. stability: 0.015
- Force/suction pump with 560mbar pressure and 24L/min flow
- Heating capacity 1.2kW
- External T control via PT100 sensor port
- Application threshold alarms to safeguard experiments
- Temperature high and low limits
- Seven languages (English, German, French, Spanish, Italian, Chinese and Japanese)
- Ten ramp programs with edit during run or pause
- USB port for remote control
- Real-time clock
- Multifunction port connects
- Booster pump (1 bar extra)
- Booster heater (2kW extra)
- Auto refill device
- Magnetic/solenoid valve box (e.g. control tap-water cooling)
Ordering Information:
Includes 8mm and 12mm hose barbs with bridge (–0022 and –0025 only), pump plug for external circulation, and 6ft. power cord.
- Warranty varies by country, please contact us for details
