THERMO 198234120000 TCIII LR 208/60HZ MDCI RS232

Specs & Details
Segment	Baths/Chillers/Heat Exchangers
Unit	Temp Control
Family	Chillers
Class	Equipment
Major Code	ThermoChill
Minor Code	TC 3
Certifications/Compliance	CE marked/UL listed
Communications	RS232
Cooling Capacity	Up to 2000 watts
Description	ThermoChill III LR 208-230V/60HZ, MDCI, RS232
Flow Rate	7.6 L/min.
Pump Type	MDC1 (Mag Drive Centrifugal Pump)
Refrigerant	R134A
Temperature Range	-10°C to +30°C
Temperature Setpoint	-10°C to +30°C
Temperature Stability	±0.1°C
Unit Size	Each
Voltage	208/230 V

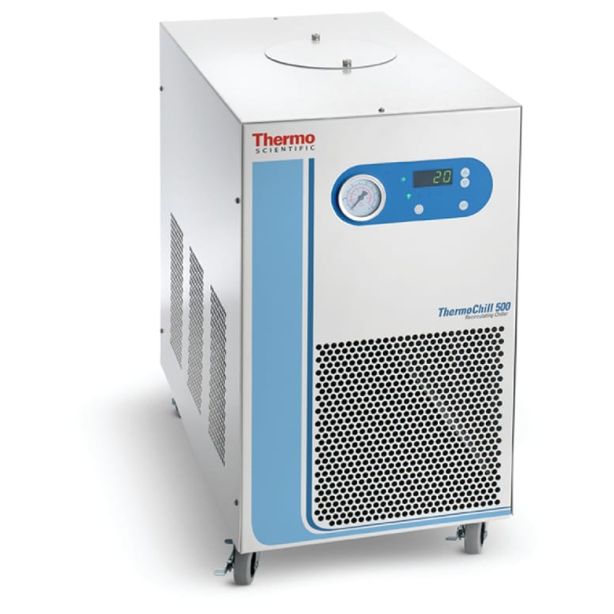

Reliable liquid temperature control, with cooling capacity up to 2000w/6830 BTU. Thermo Scientific™ ThermoChill Recirculating Chillers are a compact line of refrigerated recirculators ranging in cooling capacities from 600 to 2000 watts. Innovative design features minimized plumbing connections and an integrated full-flow fluid strainer maximize product reliability. With simplicity in design and operation, the ThermoChill platform will provide years of reliable liquid temperature control to meet all of your conventional application requirements.

Accessible fill port for easy filling
Pressure gauge located on control panel for easy viewing
Intuitive digital controller
Controller indicator lights illuminate when adjusting settings or when high/low temp alarms activated
Removable full-low strainer ensures clean recirculating fluid
Locking caster for easy unit maneuvering
RS232 or RS485 digital communications optional
