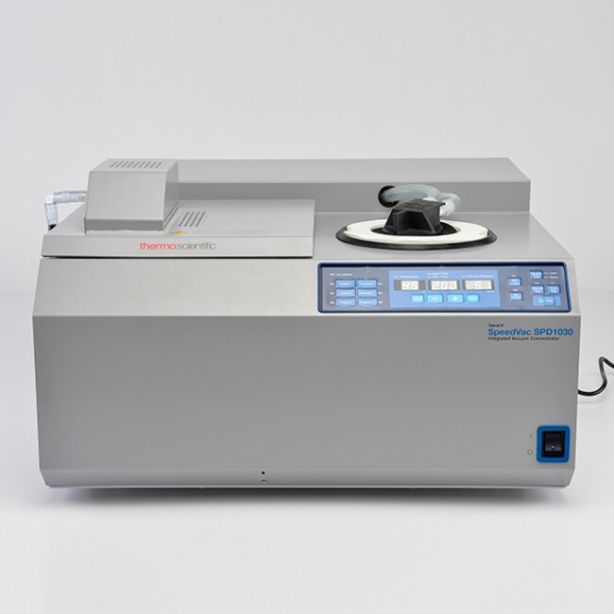

Savant™ SpeedVac™ Integrated Vacuum Concentrator Systems and Kits

Easy to Use:

• Plug and play installation: Integrated solution includes a concentrator, oil-free vacuum pump and cold trap all integrated in one unit. No tubing connections needed.
• Intuitive and user friendly program digital display which allows use of three preset programs and ability to create three customizable programs to set heat, run time, ramp rate and vacuum level for efficient operation.
• Wide variety of rotors to support sample format from micro tubes, vials and microplates to 250-ml flasks
• Audible alarm to alert user when operation is finished
• Kits are available, which includes the integrated system and rotor

Robust, Low-Maintenance Design:

• Oil-free vacuum pump is virtually maintenance free
• PTFE coated chamber protects the chamber from corrosion, while making cleaning easy

Enhanced Evaporation:

• Faster sample drying provided with radiant cover
• Vacuum ramping and pressure controls eliminate sample bumping to maintain sample integrity
• Reduced vapor path from concentrator to refrigerated vapor trap accelerates evaporation
• Rotors fit a wide variety of sample formats such as tubes, flasks, and shallow-well and deep-well microplates

Solvent and Solvent Combinations:

• Acetonitrile
• Ethanol
• Methanol
• Methylene Chloride
• Water
• Other organic solvents

• Concentrators only, accessories sold separately

SPD1030A and SPD2030A includes:

• Integrated SpeedVac system
• CryoCool™ 1 L heat transfer fluid
• Glass condensation Flask (GCF400)

SPD1030P1 Kit includes:

• Fully Integrated SpeedVac system
• 40 × 1.5mL rotor (RH40-11)
• CryoCool™ 1 L heat transfer fluid
• Glass condensation Flask (GCF400)

SPD2030P1 kit

• Integrated SpeedVac system
• 200 × 1.5mL rotor (RH200-12)
• CryoCool™ 1L heat transfer fluid
• Glass condensation Flask (GCF400)
