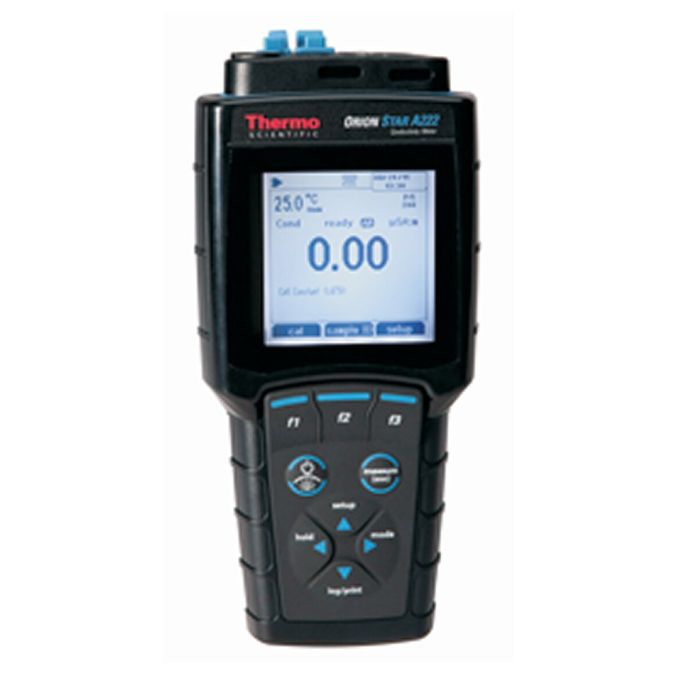

Orion STARA2220 Orion Star A222 conductivity portable meter with batteries
| Segment | WAI Lab |
|---|---|
| Unit | Water Analysis |
| Family | Lab Instruments |
| Class | Instrument |
| Major Code | E-chem Portable Meter |
| Minor Code | LSP1- Star A220 Meter |
| AC Adapter | Universal 50-60 Hz, 100-240 VAC power adapter (sold separately, Cat. No. 1010003) |
| Accuracy Conductivity | 0.5% of reading ±1 digit > 3 μS; 0.5% of reading ±0.01 μS ≤ 3 μS |
| Accuracy Resistivity | 0.5% of reading ±1 digit |
| Accuracy Salinity | 0.5% of reading ±1 digit |
| Accuracy Tds | 0.5% of reading ±1 digit |
| Accuracy Temperature | ±0.1°C |
| Alarm Output | Calibration due alarm (fixed 12 hour) |
| Backlight Option | Yes, selectable |
| Battery Life | 800 hr. |
| Battery Type | 4 x AA (included) |
| Calibration | Conductivity and temperature |
| Calibration Points Conductivity | 5 |
| Cell Constant | 0.001 to 199.9cm-1 |
| Certifications Compliance | CE, TUV 3-1, FCC Class A |
| Channels | 1 |
| Compatible Probes | 2-cell or 4-cell conductivity sensors with built-in temperature |
| Data Management Details | Transfer single, range or all data points to printer or computer |
| Data Points | 1000 with date and time stamp |
| Description | Orion Star A222 conductivity/TDS/salinity/resistivity portable meter |
| Dimensions LxWxH | 24 x 10 x 6.5 cm (9.5 x 3.9 x 2.6 in.) |
| Display Type | Graphic LCD with Backlight |
| Includes | Star A222 conductivity meter, 4 AA batteries, literature CD, printed quick start guide, computer interface cable and meter test certificate |
| Inputs | 8 pin MiniDIN (conductivity sensor with built-in temperature) |
| IP Rating | IP67 |
| Keypad | Comprehensive with menu-specific function keys and dual purpose scroll/shortcut keys |
| Languages | English, Spanish, French, Italian, German and Chinese; Portuguese and Korean available with software update |
| Log Function Type | Automatic data logging with Auto-Read measure mode; manual data logging with Continuous measure mode |
| Measurement Modes | Conductivity, TDS, Salinity, Resistivity with Temperature |
| Memory | Non-volatile memory preserves data log, calibration log and meter settings |
| Methods | 10 per channel with password protection |
| Model | Orion Star A222 Conductivity/TDS/Salinity/Resistivity/Temperature Portable Meter |
| Outputs | USB, RS232 |
| Power Supply | 4 AA batteries (included) or universal AC adapter (sold separately) |
| Probe Type | Conductivity sensor (purchase separately) |
| Range Conductivity | 0.001 μS/cm to 3000 mS/cm |
| Range Resistivity | 2 ohm to 100.0 megohm |
| Range Salinity | 0.06 to 80.00 psu, 0.05 to 42.00 ppt |
| Relative Humidity Range | 5 to 85%, non-condensing |
| Resolution Conductivity | 0.001 μS minimum, auto ranging up to 4 significant digits |
| Resolution Resistivity | 1 ohm or 0.1 megohm, auto ranging |
| Resolution Salinity | 0.01 psu or 0.01 ppt minimum, auto ranging |
| Resolution Tds | 0.001 ppm minimum, auto ranging up to 4 significant digits |
| Resolution Temperature | 0.1°C (0.1°F) |
| Salinity Measurement Modes | Practical salinity (psu) |
| Stability | Smart Stability and Smart Averaging |
| Tds Factor Range | Linear (0.02 to 9.99) |
| Temperature Compensation | Linear, nLFn (non-linear ultra pure water) or off |
| Temperature English Operating | 41°F to 113°F (ambient) |
| Temperature Metric Operating | 5°C to 45°C (ambient) |
| Temperature Metric Reference | 15, 20, 25°C |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Temperature Range Metric | -5°C to +105°C |
| Temperature Selection | Manual or automatic with ATC temperature probe |
| Unit Size | Each |
| Warranty | 3 Year Meter |
| Weight English | 1.2 lb. |
| Weight Metric | 0.5 kg |
Record accurate and reliable conductivity, total dissolved solids (TDS), salinity, resistivity and temperature measurements with the Thermo Scientific™ Orion Star™ A222 Conductivity Portable Meter. This instrument is ideal for a wide range of applications and advanced conductivity analysis in the field. Obtain temperature compensated readings using linear, non-linear or EP options with 15°C, 20°C or 25°C reference temperatures. Log up to 1000 data point sets with time/date stamp and transfer via USB or RS232 to a printer or computer. Waterproof meter ensures durable, rugged performance with an IP67-rated housing.
Don't leave your measurements to chance when analyzing samples outside the lab. Orion Star A222 conductivity portable meters are designed to offer the reliability you need in a user-friendly package for your dedicated conductivity testing needs. This waterproof portable meter displays critical data with your measurement including temperature, date and time, read type, measurement stability, active calibration info and power source status.
- Measure conductivity, TDS, salinity or resistivity with temperature
- Perform up to a five point conductivity calibration
- Auto-ranging conductivity values offer consistent readings across entire measurement range without need to recalibrate
- Use linear, non-linear or off conductivity temperature compensation with 15°C, 20°C or 25°C reference temperatures
- Informative, easy-to-read backlit graphic display with clear onscreen instructions simplifies operation
- Capture your critical readings with measurement stability indicator and selectable read modes – Auto-Read holds a stable reading and Continuous shows changing readings with hold option
- Data log collects and date/time stamps up to 1000 measurement sets
- Non-volatile meter memory ensures your data and settings are protected, even with loss of power
- Orion Star Com software facilitates data transfer to a computer via USB or RS232 connections
- Flexible power options with AA batteries or universal power adapter
- IP67-rated housing is waterproof for rugged field operation
- Meter kits include hard-sided field case and protective meter armor with electrode holders, adjustable wrist/belt strap and built-in meter stand
- Meters offer CE, TUV 3-in-1 and FCC Class A certifications and 3-year replacement warranty
Disclaimer to internal research use restriction:
Any restrictions on the purchaser to utilize the product(s) for internal research purposes only does not apply to the product(s) on the web pages associated with this statement.
-
Orion STARA2220 Orion Star A222 conductivity portable meter with batteries$918.13
-
-
-
-
