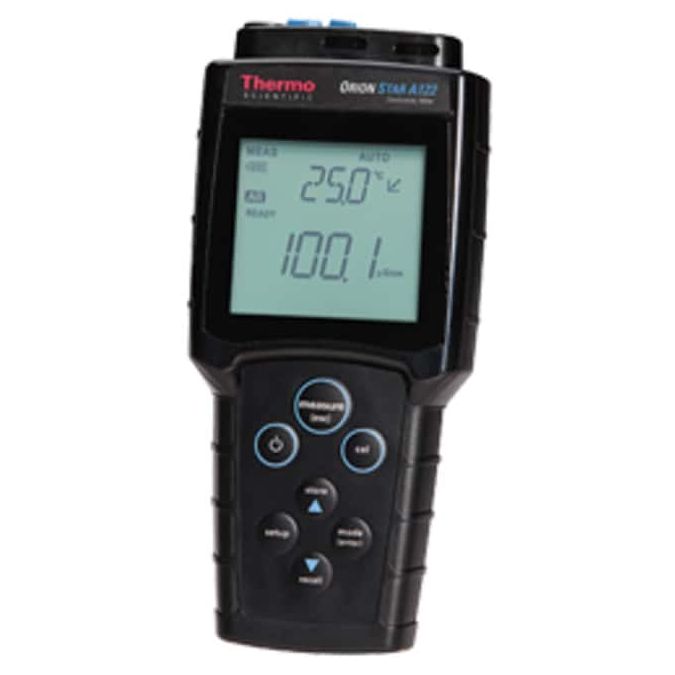

Orion STARA1225 Orion Star A122 conductivity portable meter kit
| Segment | WAI Lab |
|---|---|
| Unit | Water Analysis |
| Family | Lab Instruments |
| Class | Instrument |
| Major Code | E-chem Portable Meter |
| Minor Code | LSP1- Star A120 Meter |
| AC Adapter | Universal 50-60 Hz, 100-240 VAC power adapter (sold separately, Cat. No. 1010003) |
| Accuracy Conductivity | 0.5% of reading ±1 digit |
| Accuracy Tds | 0.5% of reading ±1 digit |
| Accuracy Temperature | ±0.1°C |
| Battery Life | 2000 hr. |
| Battery Type | 4 x AA (included) |
| Calibration | Conductivity and temperature |
| Calibration Points Conductivity | 1 |
| Cell Constant | 0.001 to 10cm-1 |
| Certifications Compliance | CE, TUV 3-1, FCC Class A |
| Channels | 1 |
| Compatible Probes | 2-cell or 4-cell conductivity sensors with built-in temperature |
| Data Management Details | Internal data point memory |
| Data Points | 50 |
| Description | Orion Star A122 conductivity/TDS portable meter kit with 2-cell conductivity sensor, solutions, meter armor and field case |
| Dimensions LxWxH | 24 x 10 x 6.5 cm (9.5 x 3.9 x 2.6 in.) |
| Display Type | LCD |
| Includes | Star A122 conductivity meter, 011050MD Orion 2-cell conductivity sensor, 011007 Orion 1413 µS conductivity standard, protective meter armor, hard-sided field case, 4 AA batteries, literature CD, printed quick start guide and meter test certificate |
| Inputs | 8 pin MiniDIN (conductivity sensor with built-in temperature) |
| IP Rating | IP67 |
| Keypad | Simple with highlighted measure key, scroll and shortcut keys |
| Languages | English |
| Log Function Type | Automatic data logging with Auto-Read measure mode; manual data logging with Continuous measure mode |
| Measurement Modes | Conductivity, TDS with Temperature |
| Memory | Non-volatile memory preserves log and settings |
| Model | Orion Star A122 Conductivity/TDS/Temperature Portable Meter |
| Outputs | None |
| Power Supply | 4 AA batteries (included) or universal AC adapter (sold separately) |
| Probe Type | Conductivity sensor (includes 011050MD Orion 2-cell conductivity sensor) |
| Range Conductivity | 0.01 μS/cm to 200.0 mS/cm |
| Range Tds | 1 to 19,999 mg/L |
| Relative Humidity Range | 5 to 85%, non-condensing |
| Resolution Conductivity | 0.01 μS minimum, auto ranging up to 3 significant digits |
| Resolution Tds | 1 mg/L |
| Resolution Temperature | 0.1°C (0.1°F) |
| Stability | Smart Stability and Smart Averaging |
| Tds Factor Range | Linear (0.02 to 9.99) |
| Temperature Compensation | Linear |
| Temperature English Operating | 41°F to 113°F (ambient) |
| Temperature Metric Operating | 5°C to 45°C (ambient) |
| Temperature Metric Reference | 20, 25°C |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Temperature Range Metric | -5°C to +105°C |
| Temperature Selection | Manual or automatic with ATC temperature probe |
| Unit Size | Each |
| Warranty | 3 Year Meter |
| Weight English | 2 lb. |
| Weight Metric | 0.5 kg |

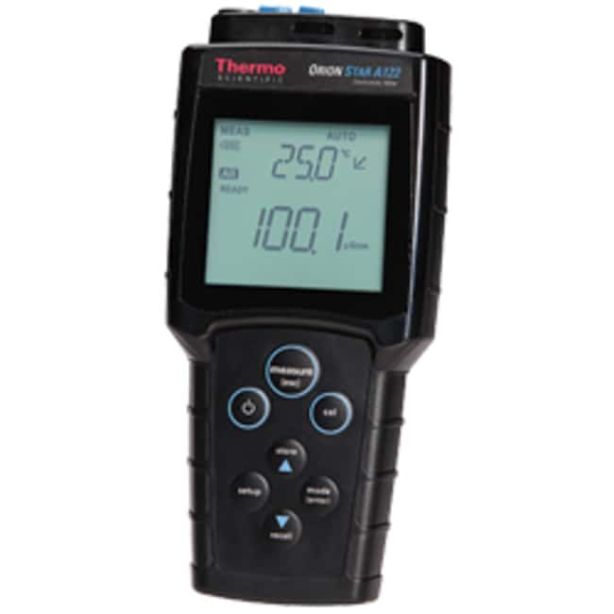

Take simple, routine conductivity, total dissolved solids (TDS) and temperature measurements with the Thermo Scientific™ Orion Star™ A122 Conductivity Portable Meter. This instrument, intended for basic conductivity analysis in the field, is easy-to-use and budget-friendly. Obtain temperature compensated readings using linear option with 20°C or 25°C reference temperatures. Quickly navigate setup menus and ensure consistent calibrations using the simple keypad layout and on-screen text prompts. This waterproof meter has an IP67-rated housing for rugged protection in outdoor environments.
Thermo Scientific Orion Star A122 conductivity portable meters are a simple, economical solution for your routine outdoor sample analysis. Featuring an emphasized measure key, selectable read modes and measurement stability indicator, our basic Orion Star A122 conductivity meters are designed to deliver measurements you can trust at an affordable price.
- Measure conductivity or TDS with temperature
- Perform a one point automatic or manual calibration
- Auto-ranging conductivity values offer consistent readings across entire measurement range
- Use linear temperature compensation with 20°C or 25°C reference temperatures
- Simplified, easy-to-read display shows main measurement with temperature, stability indicator and electrode condition icon
- User-friendly operation with basic calibration text prompts
- Easily recall calibration data for procedure checks
- Non-volatile memory preserves 50 point internal data log and meter settings, even with loss of power
- Flexible power options with AA batteries or optional universal power adapter
- IP67-rated housing is waterproof for rugged field operation
- Meter kits include hard-sided field case and protective meter armor with electrode holders, adjustable wrist/belt strap and built-in meter stand
- Meters offer CE, TUV 3-in-1 and FCC Class A certifications and 3-year replacement warranty
Disclaimer to internal research use restriction: Any restrictions on the purchaser to utilize the product(s) for internal research purposes only does not apply to the product(s) on the web pages associated with this statement.
-
