Orion LSTAR1135 Lab Star DO113 meter kit
SKU
LSTAR1135
Special Price
$1,217.00
Regular Price
$1,218.75

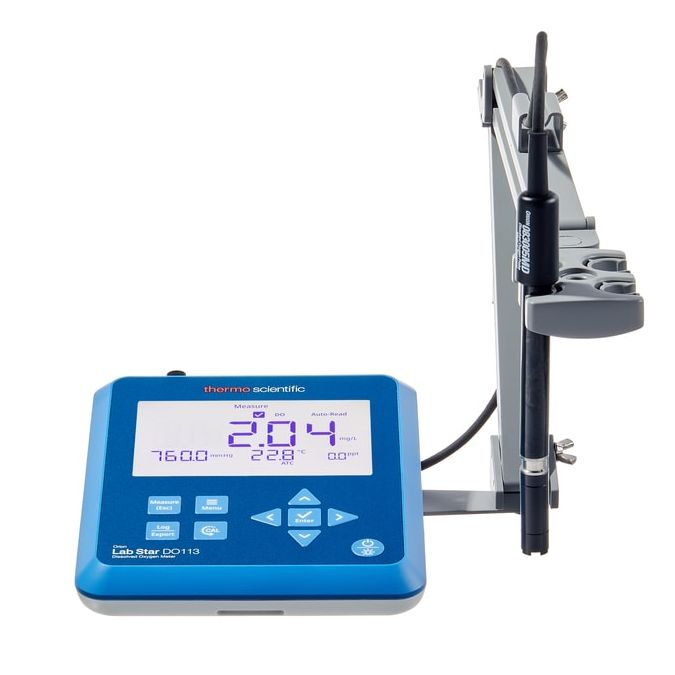

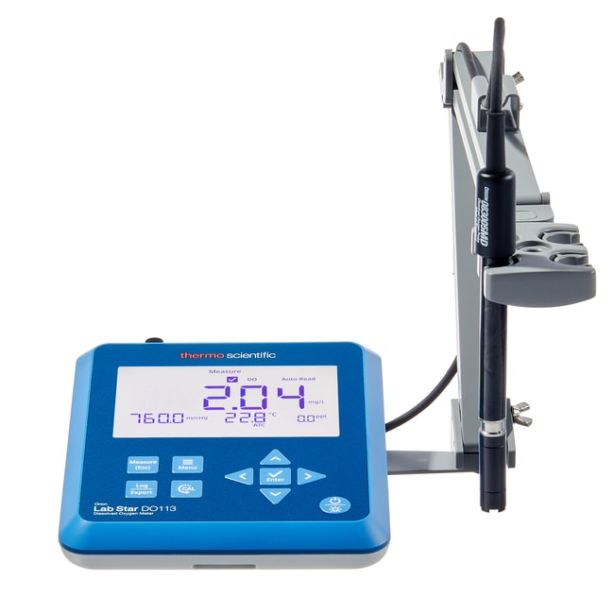

Orion Lab Star DO113 dissolved oxygen bench meters measure DO as % saturation or concentration with temperature, feature large backlit display for easy viewability, and offer small footprint to save bench space. This DO meter is ideal for simplified, budget-friendly lab testing and data recording.
| Segment | WAI Lab |
|---|---|
| Unit | Water Analysis |
| Family | Lab Instruments |
| Class | Instrument |
| Major Code | E-chem Benchtop Meter |
| Minor Code | LSA1-Lab Star 110 Meters |
| AC Adapter | Universal 100-240 V 50/60 Hz power supply with twist-and-lock meter connection and interchangeable wall plugs for US/Japan, Euro, UK/Singapore, Australia/New Zealand and China outlets |
| Accuracy Polarographic DO | ±2 % saturation ± 1 LSD; ±0.2 mg/L or ppm ± 1 LSD |
| Accuracy Temperature | ±0.3°C, ±0.5°F |
| Alarm Output | Calibration reminder alarm |
| Backlight Option | Yes |
| Calibration Modes | 100 % saturation, 0 % saturation, custom concentration value |
| Certifications Compliance | CE, TUV 3-1, FCC Class A |
| Data Management Details | Continuous, Auto-Read and Timed read modes |
| Data Points | 500 data sets with time and date |
| Description | Orion Lab Star DO113 dissolved oxygen bench meter standard kit |
| Dimensions LxWxH | 187.2 x 155.2 x 61.7 mm, 7.37 x 6.11 x 2.43 in. |
| Display Type | 5 in. backlit LCD |
| For Use With Application | For a Wide Variety of Dissolved Oxygen Samples Including BOD (with Included Adapter) |
| Includes | 083005MD polarographic DO/ATC probe with calibration sleeve; 080513 DO probe maintenance kit; 080360 BOD adapter; meter with electrode stand, PC cable, universal power adapter |
| Inputs | 9-pin MiniDIN for DO and ATC |
| IP Rating | IP54 |
| Log Function Type | Automatic with Auto-Read and Timed read modes, manual with Continuous read mode |
| Measurement Modes | Dissolved Oxygen (% Saturation with Temperature), Dissolved Oxygen (mg/L with Temperature), Dissolved Oxygen (ppm with Temperature) |
| Memory | Non-volatile |
| Outputs | Computer or printer (STARA-106) |
| Percent Saturation Range Polarographic DO | 0.0 to 300.0 % saturation |
| Pressure Range | 400.0 to 850.0 mmHg; 0.533 to 1.133 bar |
| Range Polarographic Do | 0.0 to 300.0 % saturation; 0.00 to 30.0 mg/L or ppm |
| Relative Humidity Range | 5 to 85%, non-condensing |
| Resolution Polarographic Do | 0.1, 1 % saturation; 0.01, 0.1 mg/L or ppm |
| Resolution Temperature | 0.1°C, 0.1°F |
| Sensor Types | Polarographic |
| Temperature Metric Range | -5.0°C to +105.0°C |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Temperature Selection | Manual or automatic with ATC temperature probe |
| Unit Size | Each |
| Warranty | 3 year meter warranty |
| Weight English | 1.54 lb. |
| Weight Metric | 700 grams |
Orion Lab Star DO113 DO Meter Features
- Budget-friendly DO meter for simplified dissolved oxygen as percent saturation or concentration testing
- Display shows dissolved oxygen, barometric pressure, temperature and salinity simultaneously for accurate data recording
- Measure 0.0 to 300.0 % saturation, 0.00 to 30.0 mg/L or ppm and -5.0 to 105.0 °C or 23.0 to 221.0 °F to ensure comprehensive measurement capabilities
- Perform 100% and 0% saturation calibrations, one point concentration calibration using a custom value (Winkler) and one point temperature adjustment calibrations for proficient SOP compliance
- Use automatic barometric pressure compensation for DO measurements with manual value entry in mmHg or bar
- Use automatic salinity compensation for DO measurements with value manual entry of 0.0 to 50.0 ppt
- Large 5 inch backlit display makes viewing and recording measurements easy
- Small meter footprint saves valuable bench space in your lab
- Onscreen stabilizing and ready indicators help identify when readings are complete
- Date and time data stamped data and calibration logs support GLP compliance
- View active DO and temperature calibration logs with date and time stamp to ensure accurate, reproducible measurements
- Use 500-point data log with date and time stamp to record key measurements
- Output data and calibration logs to a printer or computer for long-term data storage
Meter and Meter Kits
- LSTAR1130 is the DO meter and stand option, which allows you to purchase your DO electrode separately
- LSTAR1135 is the standard DO meter kit option, for a wide variety of dissolved oxygen samples including BOD with the included adapter
