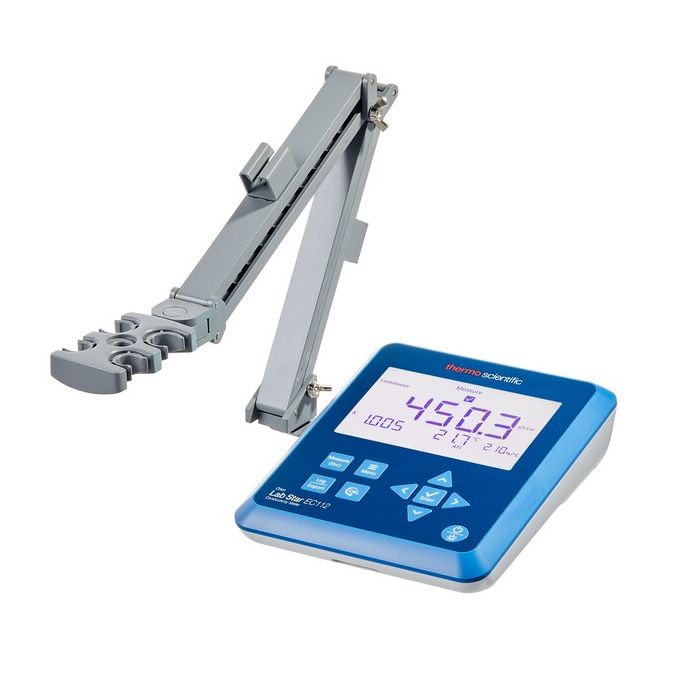

Orion LSTAR1120 Lab Star EC112 meter and stand
SKU
LSTAR1120
$684.94
Orion Lab Star EC112 conductivity bench meters measure conductivity, salinity or TDS with temperature, feature a large backlit display for easy viewability, and offer small footprint to save bench space. This conductivity meter is ideal for simplified, budget-friendly lab testing and data recording.
| Segment | WAI Lab |
|---|---|
| Unit | Water Analysis |
| Family | Lab Instruments |
| Class | Instrument |
| Major Code | E-chem Benchtop Meter |
| Minor Code | LSA1-Lab Star 110 Meters |
| AC Adapter | Universal 100-240 V 50/60 Hz power supply with twist-and-lock meter connection and interchangeable wall plugs for US/Japan, Euro, UK/Singapore, Australia/New Zealand and China outlets |
| Accuracy Conductivity | ±0.5 % of the reading ± 1 LSD |
| Accuracy Salinity | ±0.5 % of the reading ± 1 LSD |
| Accuracy Tds | ±0.5 % of the reading ± 1 LSD |
| Accuracy Temperature | ±0.3°C, ±0.5°F |
| Alarm Output | Calibration reminder alarm |
| Backlight Option | Yes |
| Calibration | Conductivity, salinity, TDS and temperature |
| Calibration Points | 1 point salinity, 1-5 points TDS, 1 point temperature |
| Calibration Points Conductivity | 1-5 points conductivity |
| Cell Constant | 0.100 to 10.00 cm-1 |
| Certifications Compliance | CE, TUV 3-1, FCC Class A |
| Compatible Probes | 2-cell and 4-cell conductivity electrodes |
| Data Management Details | Continuous, Auto-Read and Timed read modes |
| Data Points | 500 data sets with time and date |
| Description | Orion Lab Star EC112 conductivity/salinity/TDS bench meter with stand |
| Dimensions LxWxH | 187.2 x 155.2 x 61.7 mm, 7.37 x 6.11 x 2.43 in. |
| Display Type | 5 in. backlit LCD |
| For Use With Application | Meter and Stand Option, Select and Purchase The Electrode Separately |
| Includes | Meter with electrode stand, PC cable, universal power adapter |
| Inputs | 8-pin MiniDIN for conductivity with built-in ATC |
| IP Rating | IP54 |
| Log Function Type | Automatic with Auto-Read and Timed read modes, manual with Continuous read mode |
| Measurement Modes | Conductivity with Temperature, Salinity with Temperature, TDS with Temperature |
| Memory | Non-volatile |
| Outputs | Computer or printer (STARA-106) |
| Range Conductivity | 0.00 μS to 500.0 mS |
| Range Salinity | 0.00 to 80.0 ppt; 0.00 to 42.0 PSU |
| Resolution Conductivity | 0.01, 0.1, 1 μS; 0.01, 0.1 mS |
| Resolution Salinity | 0.01, 0.1 ppt; 0.01, 0.1 PSU |
| Resolution Tds | 0.01, 0.1, 1 ppm; 0.01, 0.1 ppt |
| Resolution Temperature | 0.1°C, 0.1°F |
| Salinity Measurement Modes | Natural Seawater (ppt) or Practical Salinity (PSU) |
| Tds Factor Range | 0.40 to 1.00 |
| Temperature Coefficient | 0 to 10 %/°C |
| Temperature Compensation | Linear (0 to 10 %/°C) or off |
| Temperature Metric Reference | 15.0, 20.0, 25.0 or 30.0°C |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Temperature Range English | 23.0°F to 221.0°F |
| Temperature Range Metric | -5.0°C to +105.0°C |
| Temperature Selection | Manual or automatic with ATC temperature probe |
| Unit Size | Each |
| Warranty | 3 year meter warranty |
| Weight English | 1.54 lb. |
| Weight Metric | 700 grams |
Orion Lab Star EC112 Conductivity Meter Features
- Budget-friendly conductivity meter for simplified conductivity, salinity and TDS testing
- Display shows conductivity, cell constant, temperature and temperature coefficient simultaneously for accurate data recording
- Measure 0.00 μS to 500.0 mS conductivity, 0.00 to 80.0 ppt or 0.00 to 42.0 PSU salinity, 0.00 ppm to 500.0 ppt TDS and -5.0 to 105.0 °C or 23.0 to 221.0 °F to ensure comprehensive measurement capabilities
- Perform one to five point conductivity and TDS calibrations, one point salinity calibrations and one point temperature adjustment calibrations for proficient SOP compliance
- Large 5 inch backlit display makes viewing and recording measurements easy
- Small meter footprint saves valuable bench space in your lab
- Onscreen stabilizing and ready indicators help identify when readings are complete
- Date and time data stamped data and calibration logs support GLP compliance
- View active conductivity, salinity, TDS and temperature calibration logs with date and time stamp to ensure accurate, reproducible measurements
- Use 500-point data log with date and time stamp to record key measurements
- Output data and calibration logs to a printer or computer for long-term data storage
Meter and Meter Kits
- LSTAR1120 is the conductivity meter and stand option, which allows you to purchase your conductivity electrode separately
- LSTAR1125 is the standard conductivity meter kit option, for common conductivity samples in a wide range of 1 μS/cm to 20 mS/cm
