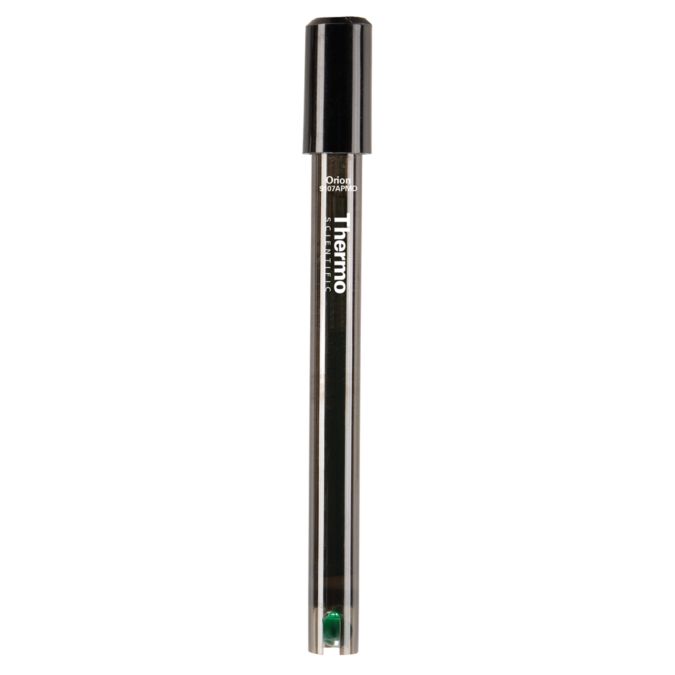

Orion 9107APMD AQUAPRO PH/TEMPTRIODE WPBNC

Specs & Details
Segment	WAI Lab
Unit	Water Analysis
Family	Lab Electrodes
Class	Consumables
Major Code	pH/ORP Sensors
Minor Code	LPH2- pH/ORP Sensors
Connector Types	BNC Waterproof, 8-pin MiniDIN
Description	Epoxy Body pH/ATC
Diameter English Body	0.47 in.
Diameter Metric Body	12 mm
For Use With Application	General Purpose
For Use With Equipment	Orion pH Meter
Internal Reference	Ag/AgCl Double Junction
Junction	Open
Length English	4.72 in.
Length English Cable	39 in.
Length Metric	120 mm
Length Metric Cable	1 m
Material	Epoxy Body
PH Range	0 to 14
PH Relative Accuracy	±0.02
Storage Requirements	Always store in pH storage solution, Orion 910001. Either store in a beaker of storage solution or reassemble in the storage bottle the electrode was provided with.
Temperature English Operating	32°F to 140°F
Temperature Metric Operating	0°C to 60°C
Type	Combination Ag/AgCl double juction pH Electrode, Mini-DIN Connector
Unit Size	Each

Read viscous liquid samples quickly and accurately without the sample coming into contact with silver ions with Thermo Scientific™ Orion™ AquaPro™ pH Combination Electrodes. These electrodes, which have a clog-resistant and open double junction reference system, are ideal for measurements in samples containing proteins or TRIS buffers and that do not contain mercury. The electrodes require minimal maintenance because there is no fill solution; instead they have a polymer gel reference.

Storage Conditions:

Always store in Orion pH Electrode Storage Solution, Cat. No. 910001
Either store in a beaker of storage solution or reassemble in the provided electrode storage bottle

Warranty:
6 months from date of purchase by Buyer or 12 months from date of shipment from Seller, whichever is earlier.
