Frequently Asked Questions
What Is The Thermo Scientific HTF55322C Tube Furnace Used For?
The Thermo Scientific HTF55322C is a laboratory tube furnace designed for high-temperature materials processing up to 1200 °C. It is commonly used for applications such as heat treatment, calcination, catalyst research, and materials synthesis. The furnace accommodates process tubes made of quartz, ceramic, or alloy and provides consistent heating for controlled experimental conditions.
What Temperature Range Does The HTF55322C Tube Furnace Support?
This tube furnace operates within a temperature range of approximately 100 °C to 1200 °C, making it suitable for a wide variety of thermal processing applications. The furnace uses high-efficiency heating elements and thermocouples designed to maintain temperature stability and uniformity across the heated zone for reliable experimental results.
What Tube Sizes Are Compatible With The HTF55322C Furnace?
The HTF55322C is designed to accommodate process tubes with an outer diameter of 1 to 3 inches (2.54–7.62 cm). Interchangeable tube adapters allow users to fit different tube diameters depending on the application. Compatible tubes are typically made from quartz, ceramic, or stainless steel for high-temperature and vacuum processes.

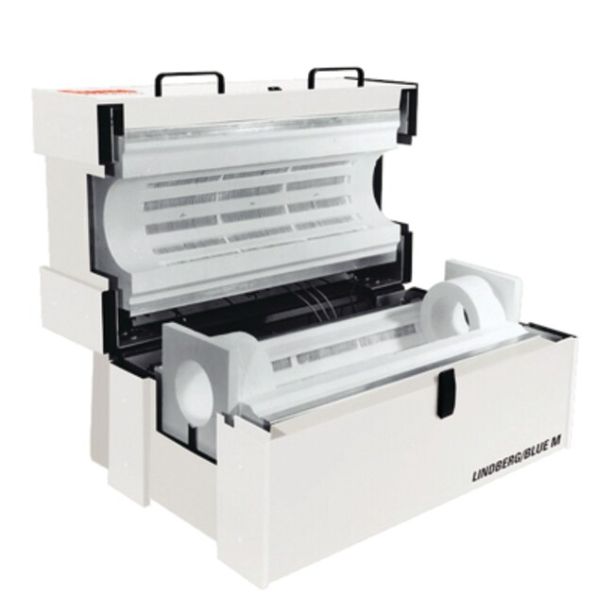

What Is The Advantage Of The Split-Hinge Tube Furnace Design?
The split-hinge or clamshell design allows the furnace to open easily around the process tube. This improves visibility and makes loading, unloading, and positioning samples much simpler. It also enables faster cooling and easier maintenance compared with fixed tube furnace designs.
Can The HTF55322C Furnace Be Used In Both Horizontal And Vertical Setups?
Yes. The HTF55322C is designed to operate in either horizontal or vertical configurations, allowing researchers to adapt the furnace to different experimental setups. This flexibility is useful for applications involving gas flow, vacuum processing, or specialized sample placement requirements.
Does The HTF55322C Include A Temperature Controller?
The furnace typically requires a separate digital temperature control module, such as the compatible CC58114 series controller. These controllers can offer standard or programmable options for precise temperature regulation and ramping profiles depending on laboratory needs.
How Long Is The Heated Zone In The HTF55322C Furnace?
The furnace provides a 12-inch (30.5 cm) heated zone, allowing uniform heating across a significant section of the process tube. This length is suitable for many laboratory processes including material synthesis, annealing, and small-scale pilot experiments.
What Heating Technology Does This Furnace Use?
The furnace uses Moldatherm™ LGO heating element modules, which are engineered to deliver strong radial and linear temperature uniformity. These elements are energy-efficient, durable, and designed for fast heat-up and cooldown cycles while requiring minimal maintenance over time.
What Safety And Durability Features Are Included?
The furnace includes a thermocouple temperature sensor, insulated cabinet design, and efficient heat-reflecting element supports that reduce exterior surface temperature. These features help protect users while maintaining stable thermal performance during high-temperature operation.
