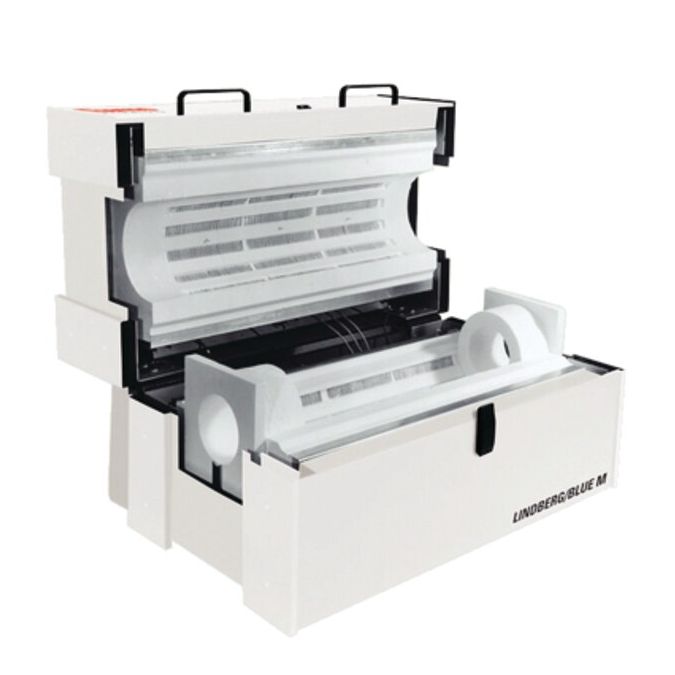

Thermo Scientific HTF55322C Lindberg Blue M BLU M SP-HNGE TUBE FURN.1ZONE
SKU
HTF55322C
$4,452.84
Configure this split-hinge tube furnace for horizontal or vertical use. Features independent digital temperature control modules for ease of use.
| Temperature (Metric) | 100°C to 1200°C |
|---|---|
| Furnace Type | Multisegment |
| Heated Zone | 12 in. |
| Display | LED |
| Temperature Control | Independent CC58114C |
| Dimensions (L x W x H) Exterior | 17 x 23 x 16 in. (43.2 x 58.4 x 40.6 cm) |
| Length (English) | 17 in. |
| Length (Metric) | 43.2 cm |
| Width (English) | 23 in. |
| Width (Metric) | 58.4 cm |
| Height (English) | 16 in. |
| Height (Metric) | 40.6 cm |
| Diameter (English) Process Tube | 1 to 3 in. |
| Diameter (Metric) Process Tube | 2.54 to 7.62 cm |
| Shipping Weight (English) | 120 lb. |
| Shipping Weight (Metric) | 55 kg |
| Electrical Requirements | 208/240 V 50/60 Hz |
| Voltage | 208/240 V |
| Frequency | 50/60 Hz |
| Unit Size | Each |
Configure Thermo Scientific™ Lindberg/Blue M™ 1200°C Split-Hinge Tube Furnaces for horizontal or vertical use. Features independent digital temperature control modules (sold separately) which are available in standard or programmable options.
Key Features- Moldatherm™ LGO™ heating element modules for superior radial and linear temperature uniformity and fast heatup and cooldown
- Long-life, energy-efficient elements require little or no maintenance
- Unique cabinet design achieves lower exterior surface temperature
- Heat-reflecting element support assembly creates two highly effective insulating air spaces
- Compact cabinet with high temperature-resistant painted finish
- Accepts interchangeable Moldatherm tube adapters
- Long-life Platinel™ II thermocouple(s) with 10ft. compensated lead wire and polarized plug
Three Zone Models
- Three independent power circuits (zones) with independent thermocouples for control references
- Full adjustment of each zone over entire operating range to 1200°C
- Center zone uniformity achieved and operating length maximized through adjustable profiling of end zones by independent controller
- Temperature uniformity achieved with independent setpoint of end zones higher or lower than center
