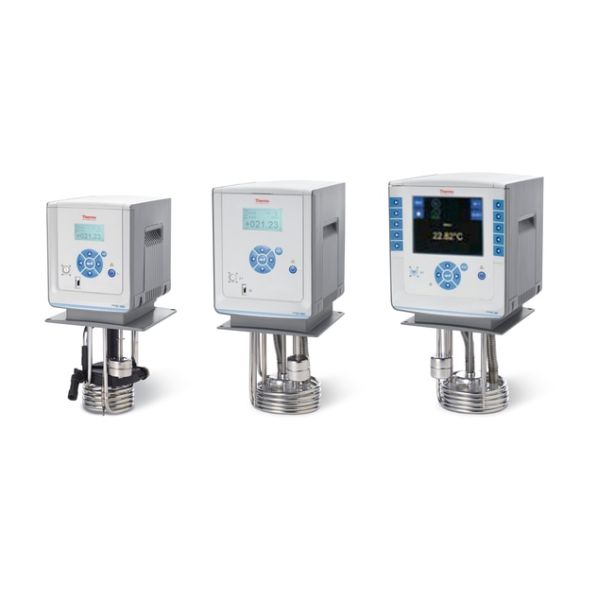

AC200 Immersion Circulators

Only %1 left

SKU

1560006-CONFIGURABLE

As low as $3,228.14

AC200 is ideal when applications require greater pumping performance, ramp programming, application alarms, and temperature ranges from -50° to +200°C.

Frequency

Model

Voltage

Qty

Product Description

Documents & Downloads

Compare & Specs

Questions 0

Thermo Scientific™ AC200 is ideal when applications require greater pumping performance, ramp programming, application alarms, and temperature ranges from 13° to +200°C. Features include an enhanced digital display and easy–to–use touchpad settings, allowing you to easily tune the temperature to meet your specific application requirements.

Max. temperature: 200°C
Low-liquid level alarm for Safety Class III
Automatic controller shutdown at detection of excessive high temperature, low liquid level or motor overload
USB communication port and options for RS-232, RS-485, Ethernet/LAN, Analog I/O
Programmable application temperature alarm with user selected alarm, go-safe-state or shut off option
Self-Tuning PID controller for optimized temperature control
Ramp program with 10 steps—edit ramp during run or pause
Whole range calibration of «n« points
RTA (Real Temperature Adjustment) for calibration
Internal or external temperature control mode (Remote Sensor, NAMUR type)
Pump speed adjustment to three levels for turbulance control
Powerful force and suction pump for external open and closed applications
Three languages (English, German, French)
Change digital display resolution between 0.1 and 0.01 and between °C — °F — °K
Acoustic and optical alarm
Auto-Restart feature after power failure
USB port for remote control
Real-time clock
Multifunction port connects
- Booster pump (1 bar extra)
- Booster heater (2kW extra)
- Auto refill device
- Magnetic/solenoid valve box (e.g. control tap-water cooling)
