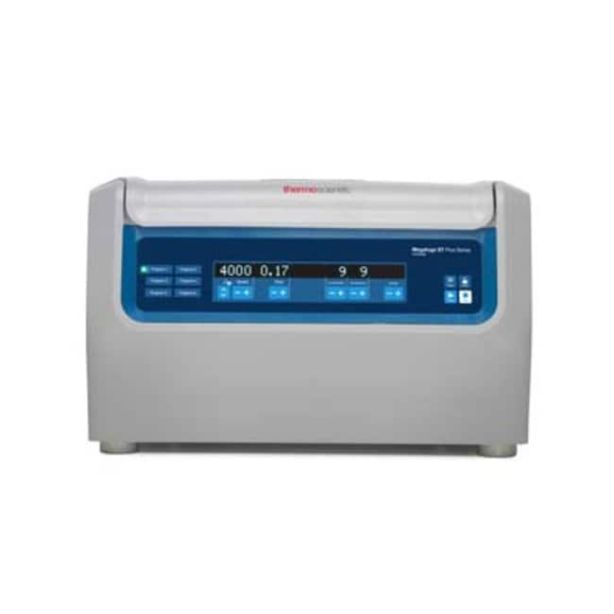

Thermo Scientific Heraeus 75009503 Megafuge ST4 Plus-MD 208-240V 50/60Hz
SKU
75009503
$9,342.35
Faster processing of more samples with a high capacity-to-footprint ratio and simple programming interface, plus the flexibility to run most tubes and bottles on one centrifuge.
| Certifications/Compliance | 1273 |
|---|---|
| Segment | Benchtop Centrifuges |
| Unit | Centrifuge |
| Family | General Purpose Centrifuges |
| Class | Equipment |
| Major Code | GP4 Pro |
| Minor Code | GP4VPro Routine |
| For Use With Equipment | Purchase of Thermo Scientific rotor and accessories required for operation |
| Controller Type | Microprocessor |
| Description | Thermo Scientific Megafuge ST4 Plus-MD, 208-240V 50/60 Hz |
| Capacity | 196 x 5/7 mL Blood Tubes, 148 x 9/10 mL Blood Tubes, 96 x 15 mL Conical Tubes, 40 x 50 mL Conical Tubes, 6 Microplates, 4 x 1000 mL BioBottles (with TX-1000 rotors) |
| Product Line | Megafuge |
| Refrigerated | No |
| Display | Bright LCD Push-Button User Interface |
| Drive System | Direct, Brushless Induction Low Profile |
| Green Features | Energy efficient, less waste |
| Includes | centrifuge include following in packaging: printed english user manual, USB stick with 28 languages of user manual, corrosion resistance oil (70009824), power cord for the accroding country supply voltage, declaration of conformity |
| Material | Front, top and sides are out of plastic(PC-ABS) painted with 2K lacquer(PUR based), metal housing is out of cold rolled steel with powder paint(structured), centrifuge bowl is corrosion-resistant high thermal conductivity(STAINLESS STEEL 1.4301 COLD ROLLE |
| Profile (Acceleration/Braking) | Choices of 9 Accel/10 Decel Rates |
| Program Storage | Up to 6 Programs via LCD User Interface buttons |
| Rotor | 13 Rotor Options Available, rotor sold separately |
| Rotor Included | No |
| Run Time | Up to 9 hr. 59 min. |
| Standards | ISO 14971, ISO 13485, ISO 9001 |
| Timer | Option to count up or down |
| Type | Benchtop Centrifuge |
| Warranty | 5 Year Limited |
| Net Weight | 89 kg |
| Voltage | 208/240 V |
| Frequency | 50/60 Hz |
| Unit Size | Each |
| Depth English | 27.2 in. |
| Depth Metric | 690 mm |
The ST4/ST4R Plus series centrifuges come standard with an easy-to-use keypad and high contrast LCD display. This high-capacity and versatile unit offers consistent performance and is ideal for routine applications. Quickly and securely swap between 13 unique rotor options with the tool-less Auto-Lock rotor exchange. Available for purchase individually or in convenient application-based packages.
Cell Culture packages include the centrifuge, rotor, ClickSeal biocontainment lids and a set of four 15 mL and 50 mL conical tube adapters.
Blood Tube packages include the centrifuge, rotor, ClickSeal biocontainment lids and a set of four 5/7 mL and 9/10 mL blood tube adapters.
Easy to Use:
- Intuitive controls simplify operation and provide detailed information on a wide range of operating parameters and processing status for optimal performance.
- Modern industrial design supports continuous improvement in rotor loading ergonomics, user safety and current needed certifications
- Motorized lid latch enables one finger downward motion for easiest closing and locking of centrifuge lid, even on tall benches.
Thermo Scientific™ Auto-Lock™ III Rotor System:
- Secure locking system allows easy push-button installation and exchange of rotors.
- System saves time when switching between applications.
- Easy access to rotor chamber offers quick cleaning, a healthier working environment and longer unit life.
Thermo Scientific™ ClickSeal™ Bucket Sealing System:
- Biocontainment solution seals with a snap; eliminates screw caps and complicated clips.
- System has glove-friendly, one-handed open/close capability.
- System is certified by CAMR™ in Porton Down, UK.
Thermo Scientific™ SMARTSpin™ Technology:
- Advanced rotor management system maximizes acceleration, braking and residual load imbalance for each rotor and bucket option:
- Technology optimizes safety and improves separations.
Space-Saving Design:
- Compact dimensions optimize work area and ergonomic height and curved design ensure easy sample loading and unloading and easy cleaning.
Energy Efficient:
- System offers up to 40% energy consumption savings on industry standard protocols, such as standard blood separation or conical tubes processing.
