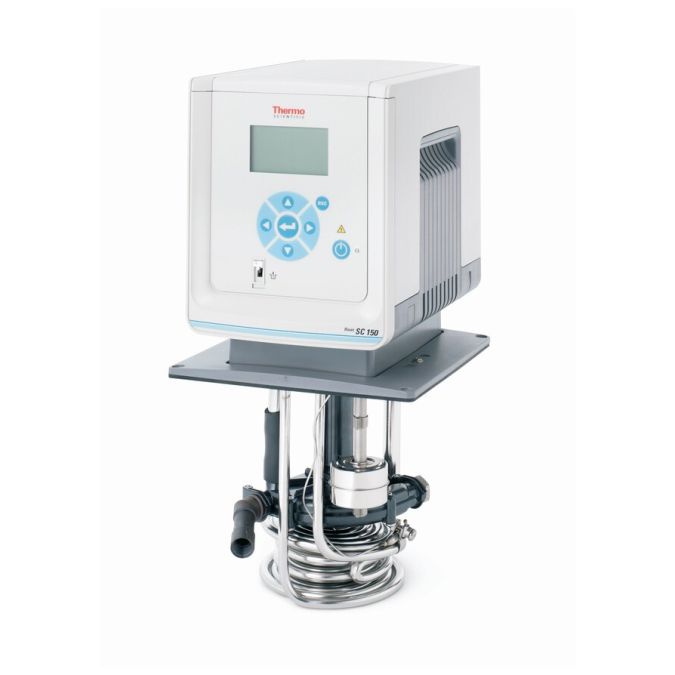

Thermo Scientific 1530006 SC 150 100V
SKU
1530006
$2,221.20
Maintain temperature from -28° to +150°C, with SC150 Immersion Circulators—a basic model in a new generation of superior quality thermostats.
| Segment | Baths/Chillers/Heat Exchangers |
|---|---|
| Unit | Temp Control |
| Family | Bath/Circulators |
| Class | Equipment |
| Major Code | SC |
| Minor Code | SC 150 |
| Certifications/Compliance | CE, CSA, UL, RoHS |
| Circulators Communications | USB, RS232, RS485, Ethernet/LAN, Analog I/O |
| Dimensions LxWxH | 7.8 x 5.4 x 13.2 in. (19.9 x 13.8 x 33.6 cm) |
| Electrical Requirements | 100 V 50/60 Hz |
| Flow Rate | 17 L/min. |
| Frequency | 50/60 Hz |
| Heating Capacity | 2 kW/1.2 kW |
| Height English | 13.2 in. |
| Height Metric | 33.6 cm |
| Length English | 7.8 in. |
| Length Metric | 19.9 cm |
| Max Pressure | 300 mbar/4.35 psi |
| Model | SC150 |
| Safety Class | 3/FL |
| Temperature Maximum Metric | 150°C |
| Temperature Range | 13°C to 150°C |
| Temperature Stability | 0.02°C |
| Voltage | 100 V |
| Weight English | 3.3 lb. |
| Weight Metric | 7.3 kg |
| Width English | 5.4 in. |
| Width Metric | 13.8 cm |
| Unit Size | Each |
Maintain temperature from 13° to 150°C, with Thermo Scientific™ SC150 Immersion Circulators. This basic model in the new generation of superior quality thermostats features an enhanced digital display and easy–to–use touchpad settings. Easily tune the temperature to meet your specific application requirements.
Designed for ease-of-use and energy efficient with powerful pumping and heating capacities for closed loop applications.- Max. temperature: 150°C
- Low-liquid level alarm for Safety Class III
- Automatic controller shutdown at detection of excessive high temperature, low liquid level or motor overload
- USB communication port and options for RS-232, RS-485, Ethernet/LAN, Analog I/O
- Self-Tuning PID controller for optimized temperature control
- 5 programmable set point temperatures
- RTA (Real Temperature Adjustment) for calibration
- Two levels of pump speed adjustment to increase flow or bath agitation
- Three languages (English, German, French)
- Change digital display resolution between 0.1 and 0.01 and between °C — °F — °K
- Acoustic and optical alarm
- Auto-Restart feature after power failure
Includes:8mm and 12mm hose barbs with clamp (–0016, –0018, –0011 only), pump plug for external circulation, 6ft. power cord.
