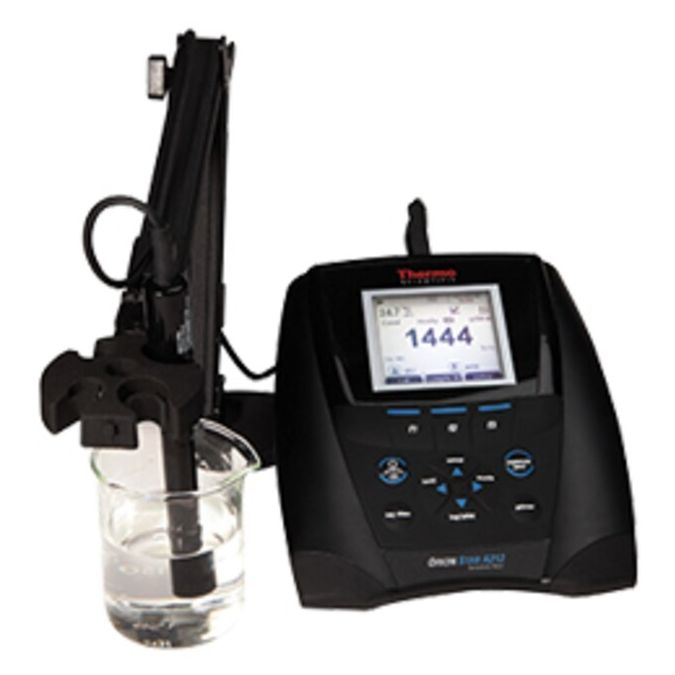

Orion STARA2126 Orion Star A212 conductivity benchtop meter pure water kit
| Segment | WAI Lab |
|---|---|
| Unit | Water Analysis |
| Family | Lab Instruments |
| Class | Instrument |
| Major Code | E-chem Benchtop Meter |
| Minor Code | LSA1- Star A210 Meter |
| AC Adapter | Universal 50-60 Hz, 100-240 VAC power adapter (Cat. No. 1010003) |
| Accuracy Conductivity | 0.5% of reading ±1 digit > 3 μS; 0.5% of reading ±0.01 μS ≤ 3 μS |
| Accuracy Resistivity | 0.5% of reading ±1 digit |
| Accuracy Salinity | 0.5% of reading ±1 digit |
| Accuracy Tds | 0.5% of reading ±1 digit |
| Accuracy Temperature | ±0.1°C |
| Alarm Output | High/low limit alarm, calibration due alarm |
| Backlight Option | Yes, selectable |
| Battery Life | 800 hr. |
| Battery Type | 4 x AA (sold separately) |
| Calibration | Conductivity with calibration editing option and temperature |
| Calibration Points Conductivity | 5 |
| Cell Constant | 0.001 to 199.9cm-1 |
| Certifications Compliance | CE, TUV 3-1, FCC Class A |
| Channels | 1 |
| Compatible Probes | 2-cell or 4-cell conductivity sensors with built-in temperature |
| Data Management Details | Transfer single, range or all data points to printer or computer |
| Data Points | 2000 with date and time stamp |
| Description | Orion Star A212 conductivity/TDS/salinity/resistivity benchtop meter kit with ultra pure water conductivity sensor, solutions and stand |
| Dimensions LxWxH | 24 x 18 x 11 cm (9.5 x 7.1 x 4.3 in.) |
| Display Type | Graphic LCD with Backlight |
| Includes | Star A212 conductivity meter, ultra pure water conductivity sensor, electrode stand, universal power adapter, literature CD, printed quick start guide, computer interface cable and meter test certificate |
| Inputs | 8 pin MiniDIN (conductivity sensor with built-in temperature), stirrer input (stirrer probe) |
| IP Rating | IP54 |
| Keypad | Comprehensive with menu-specific function keys and dual purpose scroll/shortcut keys |
| Languages | English, Spanish, French, Italian, German and Chinese; Portuguese and Korean available with software update |
| Log Function Type | Automatic data logging with Auto-Read and Timed measure modes; manual data logging with Continuous m |
| Measurement Modes | Conductivity, TDS, Salinity, Resistivity with Temperature |
| Memory | Non-volatile memory preserves data log, calibration log and meter settings |
| Methods | 10 per channel with password protection |
| Model | Orion Star A212 Conductivity/TDS/Salinity/Resistivity/Temperature Benchtop Meter |
| Outputs | USB, RS232 |
| Power Supply | Universal AC adapter (included) or 4 AA batteries (sold separately) |
| Probe Type | Conductivity sensor, stirrer probe (includes 013016MD Orion ultra pure water 2-cell conductivity sensor) |
| Range Conductivity | 0.001 μS/cm to 3000 mS/cm |
| Range Resistivity | 2 ohm to 100.0 megohm |
| Range Salinity | 0.06 to 80.00 psu, 0.05 to 42.00 ppt |
| Relative Humidity Range | 5 to 85%, non-condensing |
| Resolution Conductivity | 0.001 μS minimum, auto ranging up to 4 significant digits |
| Resolution Resistivity | 1 ohm or 0.1 megohm, auto ranging |
| Resolution Salinity | 0.01 psu or 0.01 ppt minimum, auto ranging |
| Resolution Tds | 0.001 ppm minimum, auto ranging up to 4 significant digits |
| Resolution Temperature | 0.1°C (0.1°F) |
| Salinity Measurement Modes | Practical salinity (psu) or natural sea water (ppt) |
| Stability | Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting |
| Tds Factor Range | Linear (0.02 to 9.99) |
| Temperature Compensation | Linear, nLFn (non-linear ultra pure water), nLFu (non-linear ultra pure degassed water), EP (off wit |
| Temperature English Operating | 41°F to 113°F (ambient) |
| Temperature Metric Operating | 5°C to 45°C (ambient) |
| Temperature Metric Reference | 5, 10, 15, 20, 25°C |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Temperature Range Metric | -5°C to +105°C |
| Temperature Selection | Manual or automatic with ATC temperature probe |
| Unit Size | Each |
| Warranty | 3 Year Meter |
| Weight English | 2 lb. |
| Weight Metric | 0.9 kg |
Record accurate and reliable conductivity, total dissolved solids, salinity, resistivity and temperature measurements with the Thermo Scientific™ Orion Star™ A212 Conductivity Benchtop Meter, ideal for a wide range of applications and advanced conductivity analysis in the lab. Set temperature compensated readings using linear, non-linear pure water or EP options with 5, 10, 15, 20 or 25 °C reference temperatures. Perform up to a five-point calibration, log up to 2000 data point sets with time/date stamp and easily transfer calibration and data logs via USB or RS232 to a printer or computer.
Thermo Scientific Orion Star A212 conductivity benchtop meters are easy to use, dependable laboratory meters with advanced features and functions. Selectable read modes and stability indicator give you flexibility and control over your testing. All critical data is shown with your measurements including temperature, date and time, read type, measurement stability and active calibration information. Onscreen calibration and setup instructions can be displayed in several local languages, with new languages added through software updates.
Navigation is fast and simple due to the comprehensive keypad with menu-specific function keys, dual purpose scroll/shortcut keys, plus power, measure, log view and stirrer keys that ensure easy operation. All setup menus are in one location with direct access using a single shortcut key so you can quickly access, evaluate and change measurement and instrument settings.
- Measure conductivity, TDS, salinity or resistivity with temperature
- Perform up to a five-point conductivity calibration with calibration editing option that allows individual points to be fixed without a full recalibration
- Auto-ranging conductivity values offer consistent readings across entire measurement range without need to recalibrate
- Use linear, non-linear, EP (USP) or off conductivity temperature compensation with 5, 10, 15, 20 or 25 °C reference temperatures
- Informative, easy-to-read, backlit graphic display with clear onscreen instructions simplifies operation
- Capture your critical readings with measurement stability indicator and selectable read modes — Auto-Read holds a stable reading, Continuous shows changing readings with hold option and Timed logs data at specific intervals
- Eliminate the need for magnetic stir bars using the meter-controlled stirrer probe (catalog number 096019) to uniformly mix solutions
- Data log collects and date/time stamps up to 2000 measurement sets with optional sample ID and user ID
- Calibration log stores 10 most recent calibrations
- Non-volatile meter memory ensures your data and settings are protected, even with loss of power
- Orion Star Com software facilitates data transfer to a computer via USB or RS232 connections
- Flexible power options with universal power adapter or optional AA batteries
- IP54-rated housing resists dust and splashes, and can be wall-mounted if table space is limited
- Meters include CE, TUV 3-in-1 and FCC Class A certifications and 3-year replacement warranty
Disclaimer to internal research use restriction: Any restrictions on the purchaser to utilize the product(s) for internal research purposes only does not apply to the product(s) on the web pages associated with this statement.
-
Orion STARA2126 Orion Star A212 conductivity benchtop meter pure water kit$1,722.50
-
-
-
-
