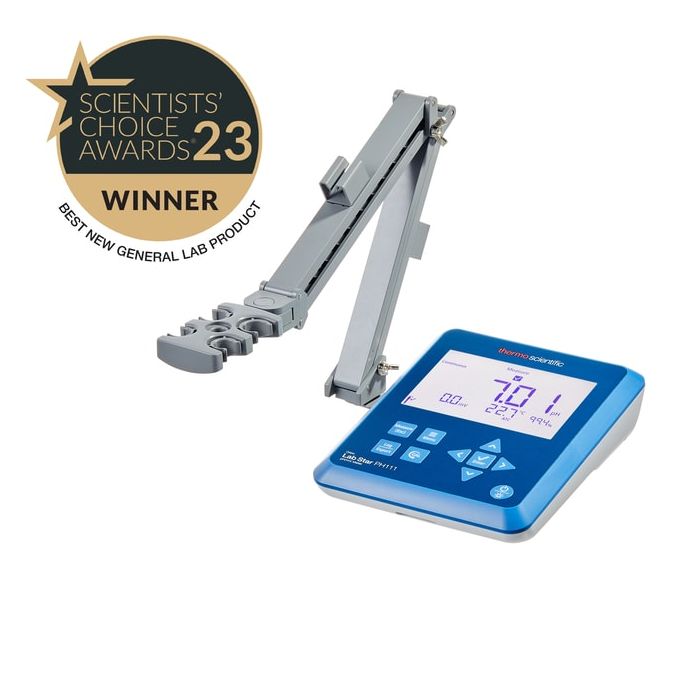

Orion LSTAR1110 Lab Star PH111 meter and stand
SKU
LSTAR1110
$570.38
Orion Lab Star PH111 benchtop pH meters measure pH or ORP with mV and temperature, feature a large backlit display for easy viewability, and offer small footprint to save bench space. The Orion Lab Star pH meter is ideal for simplified, budget-friendly lab testing and data recording.
| Segment | WAI Lab |
|---|---|
| Unit | Water Analysis |
| Family | Lab Instruments |
| Class | Instrument |
| Major Code | E-chem Benchtop Meter |
| Minor Code | LSA1-Lab Star 110 Meters |
| AC Adapter | Universal 100-240 V 50/60 Hz power supply with twist-and-lock meter connection and interchangeable wall plugs for US/Japan, Euro, UK/Singapore, Australia/New Zealand and China outlets |
| Accuracy MV | ±0.2 or ±0.05%, whichever is greater |
| Accuracy PH | ±0.005, ±1 LSD |
| Accuracy Temperature | ±0.3°C/±0.5°F |
| Alarm Output | Calibration reminder alarm |
| Backlight Option | Yes |
| Calibration | pH, ORP and temperature |
| Calibration Points | 1 (ORP) |
| Calibration Points Ph | 1 to 5 points |
| Certifications Compliance | CE, TUV 3-1, FCC Class A |
| Data Management Details | Transfer single or all data points to printer or computer |
| Data Points | 500 with Date and Time Stamp |
| Description | Orion Lab Star PH111 bench pH/mV meter with stand |
| Dimensions LxWxH | 198.3 x 155.2 x 61.7 mm, 7.81 x 6.11 x 2.43 in. |
| Display Type | LCD, 5 in. Backlit |
| For Use With Application | Meter and Stand Option, Select and Purchase The Electrode Separately |
| Includes | Meter with electrode stand, PC cable, universal power adapter |
| Inputs | BNC for pH or ORP, 8-pin MiniDIN for ATC |
| IP Rating | IP54 |
| Log Function Type | Automatic with Auto-Read and Timed Read Modes, Manual with Continuous Read Mode |
| Measurement Modes | pH with mV and Temperature, ORP with mV and Temperature |
| Memory | Non-volatile |
| Outputs | Computer or printer (STARA-106) |
| Range Mv | ±2000.0 |
| Range Orp | ±2000.0 mV with ±250 mV offset |
| Range Ph | -2.000 to 18.000 |
| Resolution Mv | 0.1 mV |
| Resolution Ph | 0.001, 0.01, 0.1 |
| Resolution Temperature | 0.1°C, 0.1°F |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Temperature Range English | 23.0°F to 221.0°F |
| Temperature Range Metric | -5.0°C to +105.0°C |
| Temperature Selection | Manual or automatic with ATC temperature probe |
| Unit Size | Each |
| Warranty | 3 year meter warranty |
| Weight English | 1.54 lb. |
| Weight Metric | 700 grams |
Orion Lab Star PH111 pH Meter Features
- Budget-friendly pH meter for simplified pH and ORP testing
- Display shows pH, mV and temperature simultaneously for accurate data recording
- Measure -2.000 to 18.000 pH, -2000.0 to +2000.0 mV and -5.0 to 105.0 °C or 23.0 to 221.0 °F to ensure comprehensive measurement capabilities
- Perform one to five point pH calibrations, one point ORP calibrations and one point temperature adjustment calibrations for proficient SOP compliance
- Large 5 inch backlit display makes viewing and recording measurements easy
- Small meter footprint saves valuable bench space in your lab
- Onscreen stabilizing and ready indicators help identify when readings are complete
- pH electrode condition icon helps ensure reliable electrode performance
- Date and time data stamped data and calibration logs support GLP compliance
- View active pH, ORP and temperature calibration logs with date and time stamp to ensure accurate, reproducible measurements
- Use 500-point data log with date and time stamp to record key measurements
- Output data and calibration logs to a printer or computer for long-term data storage
Meter and Meter Kits
- LSTAR1110 is the pH meter and stand option, which allows you to purchase your pH electrode separately
- LSTAR1115 is the standard pH meter kit option, for common pH samples such as drinking water, tap water, buffers (non-TRIS) and general purpose student use
- LSTAR1116 is the easy-to-clean bio pH meter kit option, for pH samples containing TRIS buffers, proteins, sulfides, halides or other components that can interfere with silver-chloride; included refillable pH electrode is easy-to-clean and restore
- LSTAR1117 is the low-maintenance bio pH meter kit option, for pH samples containing TRIS buffers, proteins, sulfides, halides or other components that can interfere with silver-chloride; included gel-filled pH electrode is low-maintenance and easy to operate
- LSTAR1118 is the difficult sample pH meter kit option, for pH samples that are thick, viscous or semi-solid including foods, beverages, wastewaters, emulsions, soils, slurries, suspended solids or sludges
