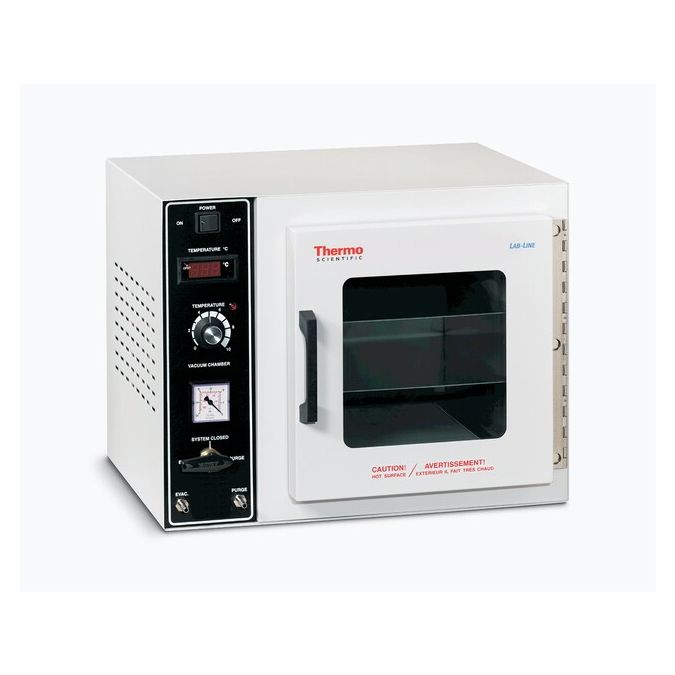

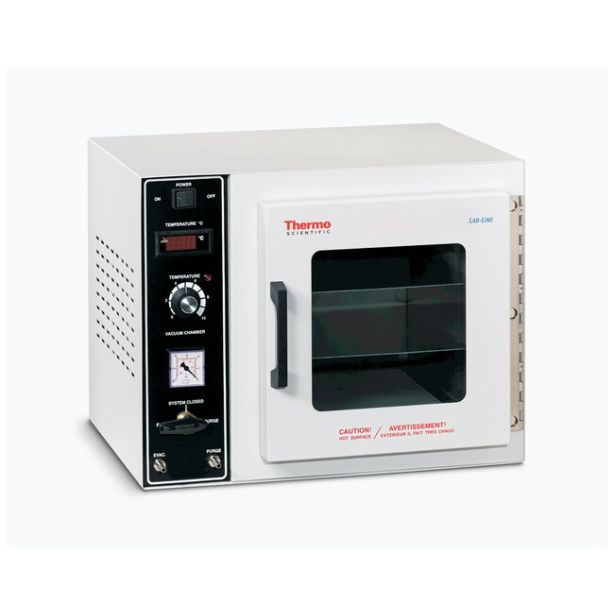

Lab-Line 3618-1CE OVN VAC 2.3 CU FT 240-50/60

Achieve maximum temperatures of 220°C (428°F) with Thermo Scientific™ Vacuum Ovens, while benefiting from two control configurations and display options. These ovens feature independent vacuum and purge needle valves. Radiant warm-wall heating system optimizes uniformity and conserves chamber space for drying, curing, vacuum embedding and plating applications. Features:

• 3 convenient chamber sizes: 12.5L (0.44 cu.ft.), 19.8L (0.7 cu.ft.), 65.1L (2.3 cu.ft.)
• Temperature Range: Ambient +10° to 220°C
• Hydraulic thermostat temperature control with dial thermometer (5°C increments); medium and large units available with LED display (1°C increments)
• Polycarbonate safety shield protects door glass
• Silicone door gasket and positive latch door maintain seal at all vacuum levels – use of vacuum grease is recommended
• Vacuum and air lines are corrosion-resistant, stainless-steel tubing for optimum chamber cleanliness and long-term performance
• Two removable stacking aluminum shelves
• Powder-coated, heavy-gauge steel exterior for durability
• Radiant warm-wall heating system helps optimize uniformity and conserve chamber space; 3 in.(7.6cm) glass wool insulation prevents heat loss

Small 3606 Models
Top-mounted, independent evacuation and venting vacuum fittings

Medium and large 3608 and 3618 Models
Front-mounted, three-way valve for evacuation, venting and purging of inert gases (e.g. Nitrogen or Argon) with vacuum fittings on the front of the unit
